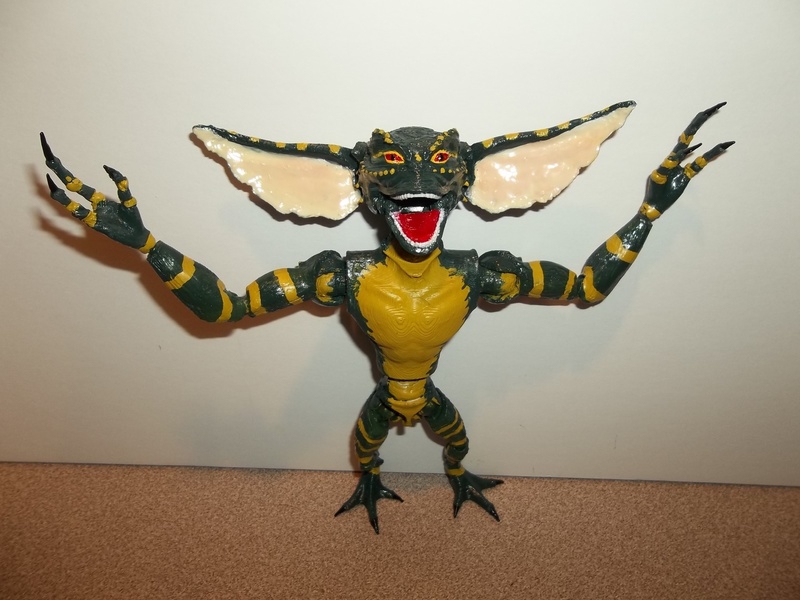

I've always wanted an articulated Gremlin and decided to try making one,

this is it. I used this excellent model  Gremlin STL by Hoinz http://www.thingiverse.com/thi...

and I used these joint connectors from

http://www.toyforge.in/product...

I replaced the neck connector with a pin (to save headaches) and included alternate head and hands files (non articulated ears and fingers)  that should be be easier and faster to print at layer 0.2mm Use supports when printing,  body parts only need light cleaning, as any small support leftover adds to the scaly look of the Gremlin, joints need proper clean sanding to snap together

GREMLIN print time broken up: temp 205  infill 30%  layer height 0.2mm   speed 45 body  2hr 28 min arms  1hr 44 min legs  1hr 28 min waist and pins  1hr 43 min GREMLIN with articulated ears print settings: print time 4 hr 30 min  infill 50%   layer height 0.1mm   speed 40

GREMLIN articulated hands print settings: print time 1 hr 48 min infill 50%   layer height 0.06mm  speed 20
