AIO kitchen assistive device for people with hands disabilities
Free

           I created this device with the counsel of a friend chef for those with hands disabilities or even with one hand only.

           Seeing several times Brandy Leigh Scott 's videoclip  in the kitchen and trying to do something with my fingers glued in my own kitchen such as:  chopping fruit , separate the yolks egg or just cutting the bread etc ...... it was imposible task for me.

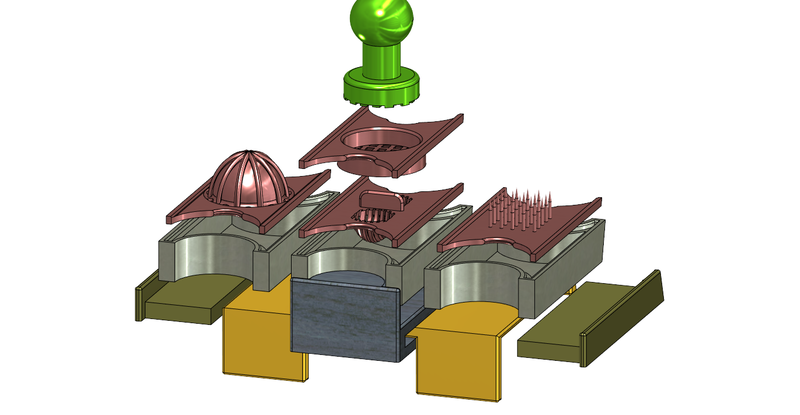

         So I contacted my friend chef and asking a few tips I started doing some sketches as you see in pictures but let 's get to work to explain what it is about:

        1- The cutting board is like any other but it shows the additional walls to help to cut or put the butter on the bred etc...

        2- Bred cutter left side ( to help in the fall slices of bread when cutting on the left side )

        3- Bred cutter right side (  to help in the fall slices of bread when cutting on the right side )

        4- Clear and Yolk seaprator ( to cut the egg and separate the yolk )

        5- Cookware multi box and bottomless cookware multi box ( to this universal box can be attached all devices, you can print as many want )

        6- Cover for multi box cookware

        7- Crimping hamburger device (  This device can be used to create hamburgers by pressing the minced meat )

        8- Hamburger mold

        9- Helping device for cutting fruits and vegetables

       10- Manual lemon,orange etc.... juicer

       11- Pusher for cans,bred cutting and for cookware multi box

       Adding other devices that will coupling to this device very soon so stay tuned.

Loading comments...

Loading prints...

AIO kitchen assistive device for people with hands disabilities

likes
5 collections
Creative Commons Attribution-NonCommercial-ShareAlike

You can distribute, remix, adapt, and build upon the material in any medium or format for noncommercial purposes only, with attribution and under the same license.

CC BY-NC-SA Licensed under CC BY-NC-SA
Files Included

12 downloadable files:

hamburger_mold.stl
STL Model
~1-5 MB
Est. size
helping_device_for_cutting_fruits-vegetables.stl
STL Model
~1-5 MB
Est. size
manual_juicer_orange-lemon_etc_....stl
STL Model
~1-5 MB
Est. size
multi_cookware_box.stl
STL Model
~1-5 MB
Est. size
pusher_for_cans__bread_and_cookware_multi_box.stl
STL Model
~1-5 MB
Est. size
bottomless_multi_cookware_box.stl
STL Model
~1-5 MB
Est. size
bred_cutter_left_side.stl
STL Model
~1-5 MB
Est. size
bred_cutter_right_side.stl
STL Model
~1-5 MB
Est. size
clear_yolk_separator.stl
STL Model
~1-5 MB
Est. size
cover_for_cookware_multi_box.stl
STL Model
~1-5 MB
Est. size
crimping_hamburger_device.stl
STL Model
~1-5 MB
Est. size
cutting_board.stl
STL Model
~1-5 MB
Est. size
Free download - login required
Downloaded: 66 times
