Tamiya F104 Standup Servo Mount
Free

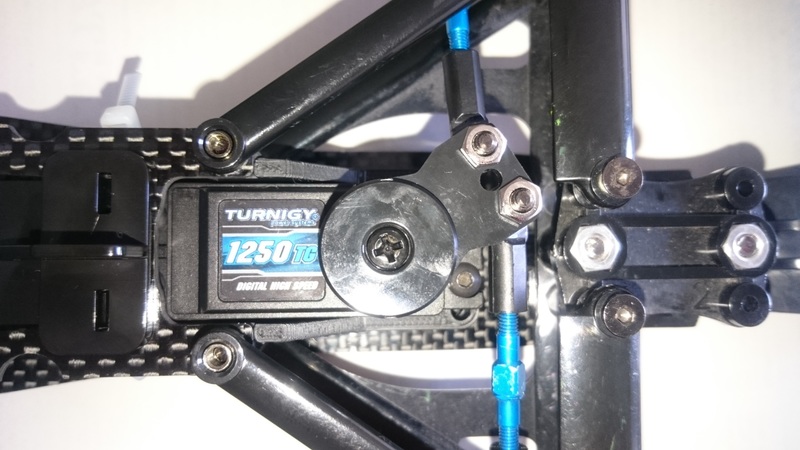

I've never liked the idea of cutting the mounting wings off a perfectly good servo just to fit it into an RC Formula1 pan-car. This mount for the Tamiya F104 Pro (and F104W and F104X1 probably) means that a low profile servo can be used and secured with bolts and nuts. You'll need to add a few spacers under the ball-studs to allow the steering tie-rods to clear the wishbones. I used the Tamiya threaded ball nuts (part number 53640) and a few M3 spacers on my standard Tamiya HighTorque servo saver.

Loading comments...

Loading prints...

Tamiya F104 Standup Servo Mount

likes
1 collection
Creative Commons Public Domain

The creator has waived all rights to the work. You can copy, modify, distribute and perform the work, even for commercial purposes, without asking permission.

CC0 Licensed under CC0
Files Included

1 downloadable file:

View 3D
F104StandupServo_shapeways.STL
STL Model
305.6 KB
File size
Free download - login required
Downloaded: 7 times
