Pitch control on ZMR250
Free

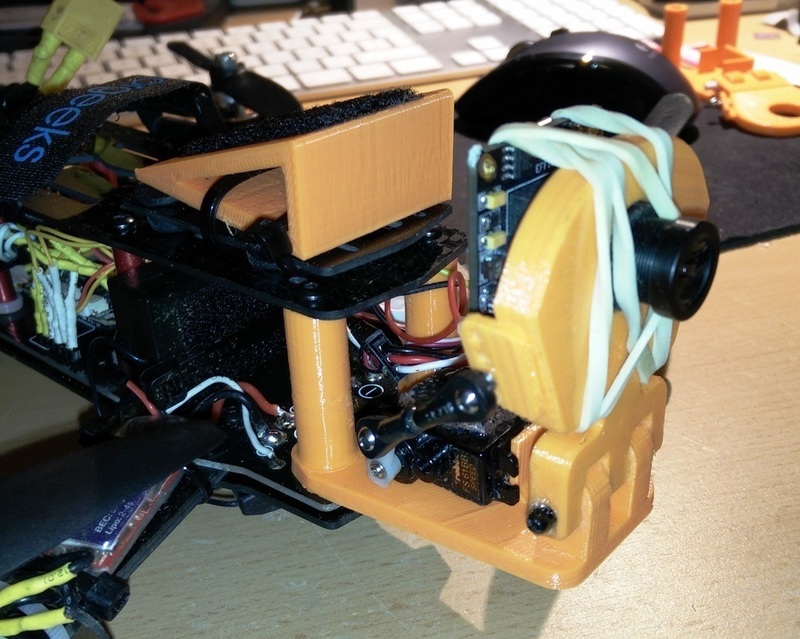

SummaryI had problems to land with an important camera pitch angle, so I decided to create a system in order to modify this angle according to the fly pattern.So, you can take off with 0° and fly with 30° and land with 0° angle. You'll need a kit from heli world to link the servo arm to the gimbal. I used a Robbe servo. It is obvious that the system is exposed to crash but with the mount angle, we should save the system. Here is a small video to show the first try. I plan to fly and post the result as soon as possible. https://youtu.be/4imeJsxxsrI

Loading comments...

Loading prints...

Pitch control on ZMR250

likes
0 collections
Creative Commons Attribution

You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given to the creator.

CC BY Licensed under CC BY
Files Included

2 downloadable files:

View 3D
ZMR_servo_base_correction.stl
STL Model
119.9 KB
File size
View 3D
part_sup_servo_cam_corr.stl
STL Model
~1-5 MB
File size
Free download - login required
Downloaded: 13 times
