Compact Prusa i3 Y Idler
Free

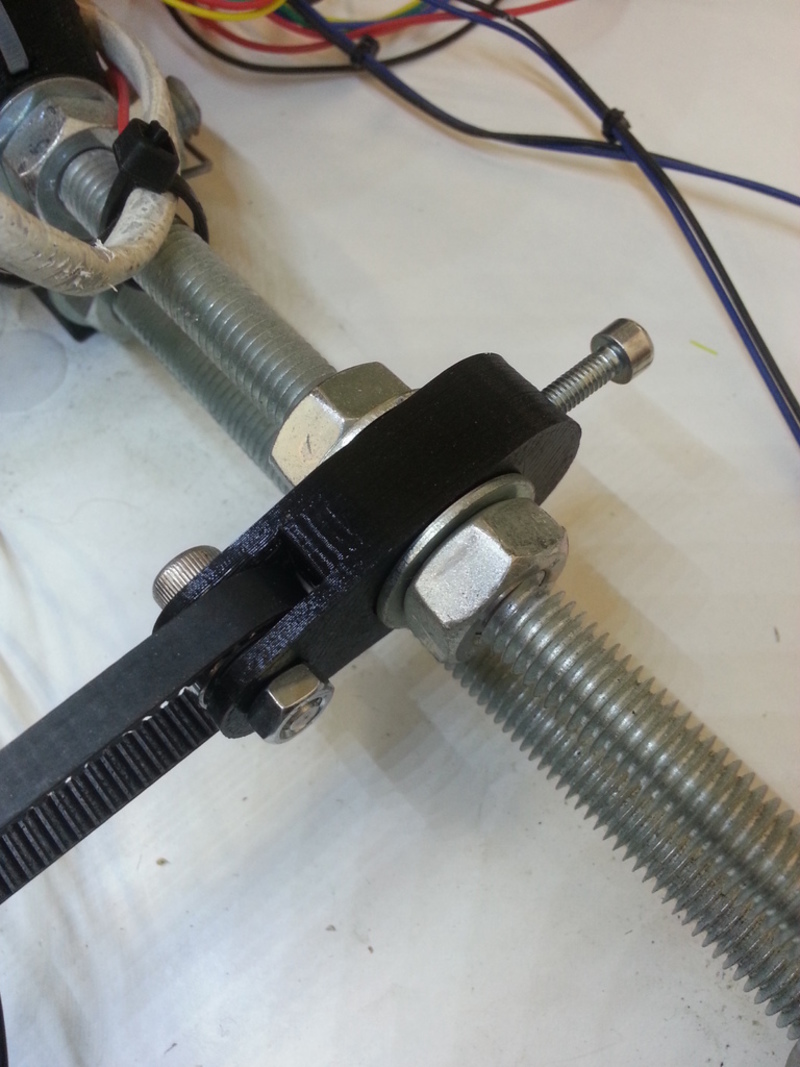

SummaryI needed a Y Idler that maximized the space I had on the Y-axis. I needed to do a print that pushed to the absolute edges of the build plate. It works just as good as the i3 rework but is smaller in size and uses a smaller bearing. You'll need: 1 4mm bolt and nut 1 5mm bolt and nut 2 5mm washers 1 605Z bearing Sandwich the bearing in between the washers and then insert into idler. Screw the 5mm bolt through and tighten it with a nut on the opposite side, use threadlocker to make sure its stays put. Enjoy, feedback/suggestions always appreciated. Released through my company: http://northernlayers.com

Loading comments...

Loading prints...

Compact Prusa i3 Y Idler

likes
0 collections
Creative Commons Attribution-ShareAlike

You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given and your contributions are under the same license.

CC BY-SA Licensed under CC BY-SA
Files Included

1 downloadable file:

View 3D
YIDLER.stl
STL Model
~1-5 MB
File size
Free download - login required
Downloaded: 50 times
