Cable Drag Chain for Vulcanus V1
Free

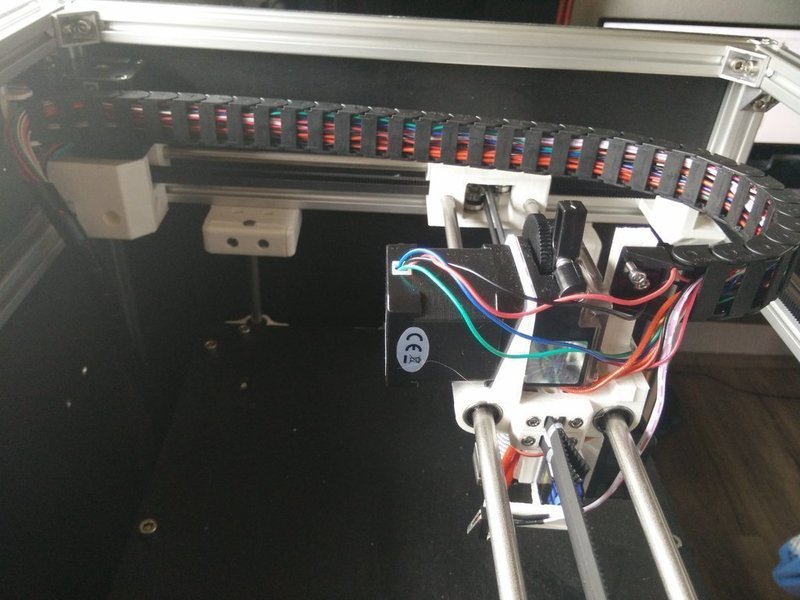

SummaryI just designed a simple mount for a cable drag chain for my Vulcanus V1 (2016) an thought someone may like to use it as well. The part on the x-carriage (2016 Version!) is glued on to with acetone - the part on the back is mounted with 2 M3 screws and M3 square nuts. If you modify the part that goes on the x carriage you should be able to adept the part to most 3d printers. The mount is designed for a 20x10mm drag chain, I just ordered this one: http://www.aliexpress.com/snapshot/7852889247.html?spm=2114.13010608.0.53.AkDCg8&orderId=76585111359057 I also uploaded the .stp files, so you can edit the model, if you are planing to use a different drag chain

Loading comments...

Loading prints...

Cable Drag Chain for Vulcanus V1

likes
0 collections
Creative Commons Attribution

You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given to the creator.

CC BY Licensed under CC BY
Files Included

2 downloadable files:

View 3D
Kabelkette_Halterung_Female.stl
STL Model
26.4 KB
File size
View 3D
Kabelkette_Halterung_X-Carriage.stl
STL Model
11.1 KB
File size
Free download - login required
Downloaded: 86 times
