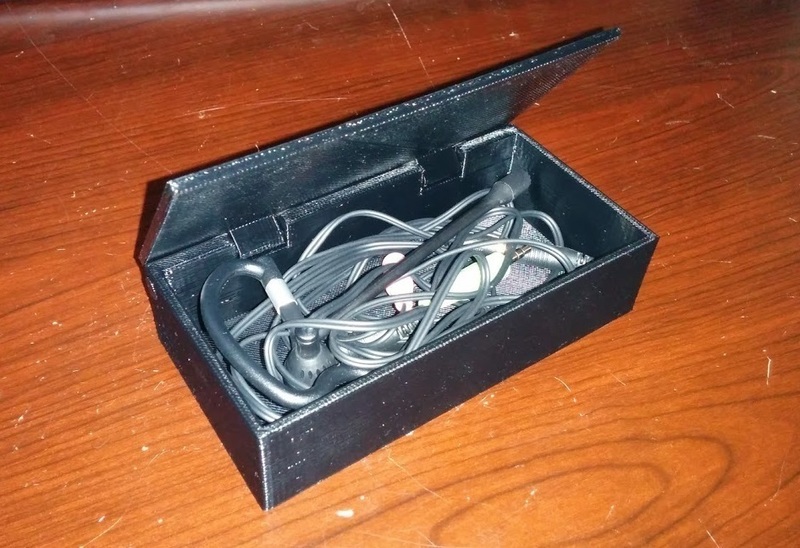

Amazing Parametric Hinge Case
Free
SummarySimple Solidworks 2014 model that you can Adjust the inside Volume and Wall thicknesses. Check out this Video for more info: http://youtu.be/jgnN0x6gR8U *If you need and special size case and you do not have solidworks, please add a comment of the size of box you need and what it will be used for.*** Instructions1)Adjust size of box in solidworks 2) Export file to STL 3) Print File 4) thread 1.75mm filament for hinge, leave 10mm excess on both sides 5) Use a heat gun or lighter to heat up filament 6) Press filament with a knife to the side of the box to fuse together 7) Upload you design for other people to use ;-)

Loading comments...

Loading prints...

Amazing Parametric Hinge Case

likes
0 collections
Creative Commons Attribution

You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given to the creator.

CC BY Licensed under CC BY
Files Included

4 downloadable files:

View 3D
Parametric_Hinge_Case__WGL__3in_X_3in_X_3in.STL
STL Model
71.0 KB
File size
View 3D
Parametric_Hinge_Case__WGL__120mm_X_60mm_X_20mm.STL
STL Model
70.8 KB
File size
View 3D
Parametric_Hinge_Case__WGL__50mm_X_50mm_X_20mm.STL
STL Model
71.0 KB
File size
View 3D
Parametric_Hinge_Case__WGL__100mm_X_50mm_X_20mm.STL
STL Model
70.8 KB
File size
