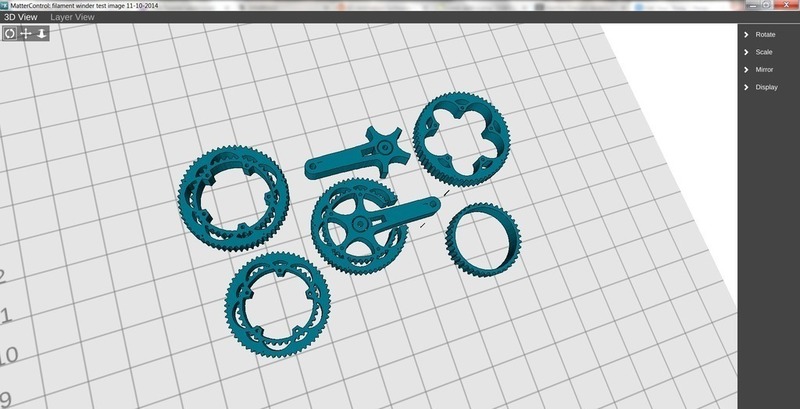

Filament Winder Handle, Crank and gear assembly
Free
SummaryThis is the first upload for the Filament winder on my kickstarter project. The filament winder is designed to work with a hand crank and also a stepper motor. These gears will make more sense when you see the video (being processed and uploaded soon). I use Pronterface and the extruder motor 4 pin on the arduino 2650 board. My next challenge is to interface with an outside power supply. I also have a solar powered motor on the table ready to be experimented with!

Loading comments...

Loading prints...

Filament Winder Handle, Crank and gear assembly

like
3 collections
Creative Commons Attribution

You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given to the creator.

CC BY Licensed under CC BY
Files Included

1 downloadable file:

View 3D
filament_winder_crank_and_gears.stl
STL Model
1.2 MB
File size
Free download - login required
Downloaded: 70 times
