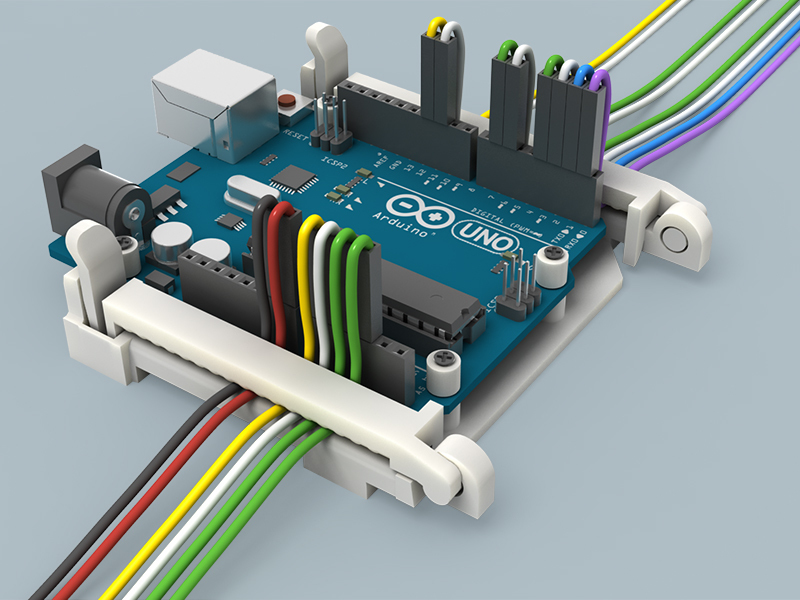

A smart holder for your Arduino UNO.
- Keeps all your wiring nice and organized.
- Prevent the wires to "slip out" and will keep your circuit intact, even when it moves!
- Open and close the bracket with a simple snap, when rewiring.
See: VIDEO
Easy to assemble, just push the two hinge/bracket in thier holes in an open position, and then fold them down to lock them in place. The 4 washers are used to hold the card in place with a small self tapping screw approximately ~1,2 mm in diameter. I use exactly these screws: PIKO A 55298
An "Arduino MEGA2560 holder" is also available here: Arduino MEGA2560 Compatible Holder
