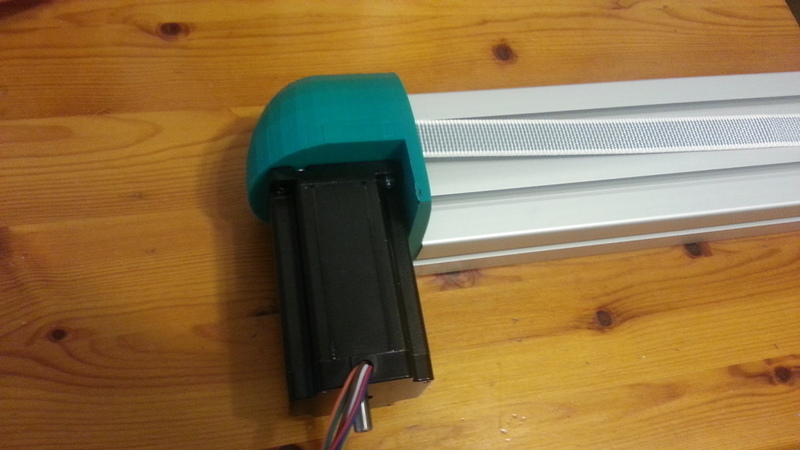

SummaryOur CNC dual-drive needed a way to fix nema23 drive motors to the extrusion. Not having another CNC around to cut some aluminum parts we 3D printed them.InstructionsYou'll need to mirror the part for the left-side motor.
This design will send the belt back to the idler through the hollow channel of the extrusion.
Loading prints...
Motor mount for 90x45mm t-slot
