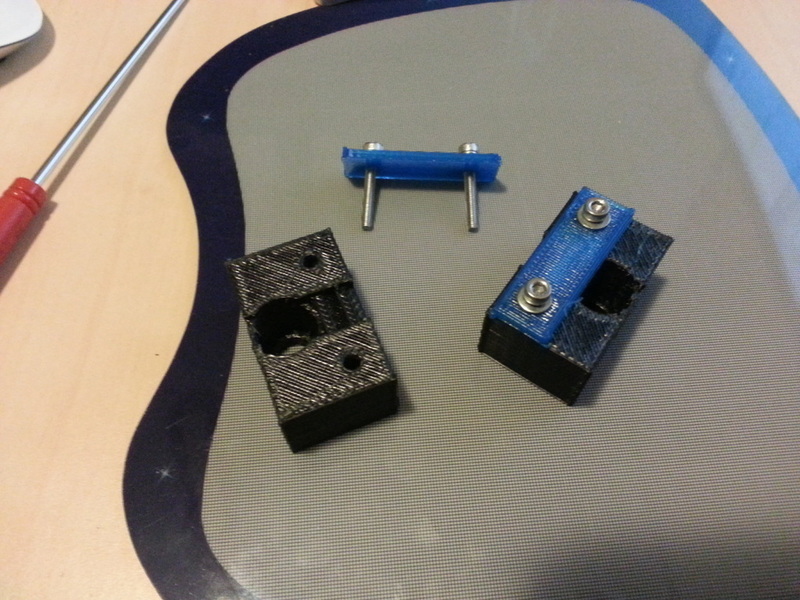

SummaryIt is for XL and T5 belts.
My application required 17mm height. M3 screws and nuts were used for the belt holder plate on top. One M8 screw will attach the part to extrusion central slot of 40x40mm or 45x45mm aluminium extrusion.
Loading prints...
Belt attachment for t-slot extrusions
