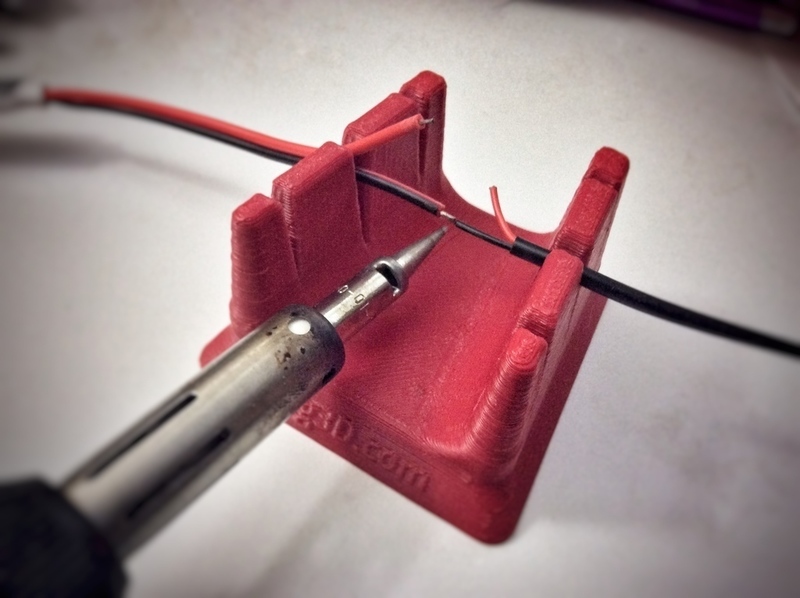

I saw another soldering aid that holds wires. I liked the concept, but it seemed a bit blocky and filament heavy, so I modeled my own in Onshape. It's tapered so you have more room on one side if need be. After showing a buddy this, he asked if I could make something to help him solder Deans connectors--very over- designed. So I made one --> Deans Connector Soldering Stand
Time-lapse: https://youtu.be/6UBhbnI3Oc0Pr...
Printer: I300 Pro, Rafts: No, Supports: No, Resolution: 0.26mm, Infill: 10%,Notes: Testing out 3dxtech's new ASA filament. A lot like ABS but less smell and no warping so far. And UV resistant.
2 shells and printing @ 250ºC seems quite strong. Might want 3 shells for PLA.
With 10% infill, took a bit over an hour for my printer to make it.
ASA filament link: http://www.3dxtech.com/asa-fil...
