MPCNC Harbor Fright cutout tool mount
Free

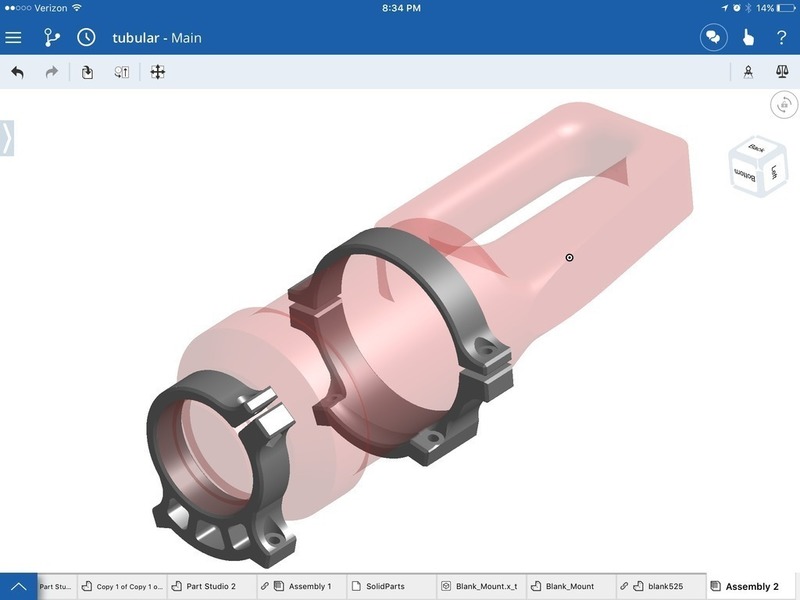

SummaryMostly Printed CNC tool mount for the Harbor Fright* 3.5A Electric Cutout Tool. Should be a solid mount for a cheap tool (<$20 on sale using a coupon). http://www.harborfreight.com/electric-cutout-tool-42831.html *FRIGHTful how much 'stuff' I buy from there.Print SettingsPrinter: i300ProRafts: NoSupports: NoResolution: 0.26mmInfill: 45%Notes: I used MakerGeeks dishwasher-safe high-temp PLA at 230ºC. A bit more flexible that standard PLA, but seems like a solid mount. Initially the top mount was one piece with one split. The PLA I used flexed enough to get around the tool, but standard PLA probably would have broke so redesigned it.Post-PrintingNeeds seven (7) sets of 6-32 x 3/4" screws with lock nuts--four sets to mount to the tool base, and three sets to hold the tool. Still assembling my MPCNC, so in theory, the HF cutout tool should work for basic stuff.

Loading comments...

Loading prints...

MPCNC Harbor Fright cutout tool mount

like
1 collection
Creative Commons Attribution-NoDerivatives

You can download, share, and use commercially, but you cannot change the material in any way or use it to make something new.

CC BY-ND Licensed under CC BY-ND
Files Included

3 downloadable files:

View 3D
hf_tool_mount_top.stl
STL Model
~1-5 MB
File size
View 3D
hf_tool_mount_top_strap.stl
STL Model
~1-5 MB
File size
View 3D
hf_tool_mount_bottom.stl
STL Model
~1-5 MB
File size
