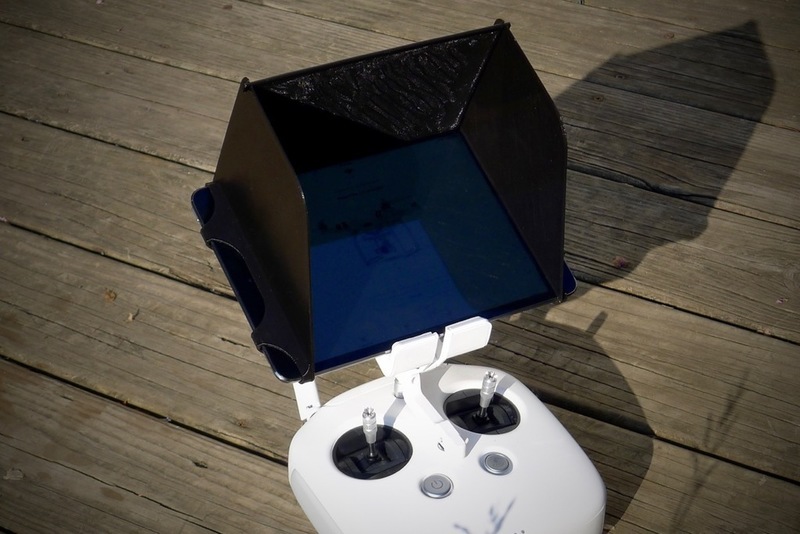

SummaryNeeded a sun shield/visor/hood for my buddy's DJI Phantom quadcopter. Printable in three parts on a standard 200mm x 200mm bed.Print SettingsPrinter: i300ProRafts: NoSupports: YesResolution: .24 mmInfill: 20%Notes: Printed with 3 outlines/shells using a 0.4mm nozzle. Each piece took about 1.5 hours to print. Designed for home button and lightning connector on the right. Should fit snuggly over iPad Mini 2, 3 or 4. Best printed in black. Walls are 0.9mm thick--usually 4 layers.Post-PrintingAssemblyBreak off supports if you printed with them (may not need then, but doesn't add much time. Put sides on first, and then drops and swivel in the top. When you clamp into the Phantom's holder, the top will stay down securely.How I Designed ThisDesigned using Onshape, digital caliper, and a bit of gumption.
Loading prints...
iPad Mini hood/visor/shade
Creative Commons Attribution-NoDerivatives
You can download, share, and use commercially, but you cannot change the material in any way or use it to make something new.
Licensed under CC BY-ND
