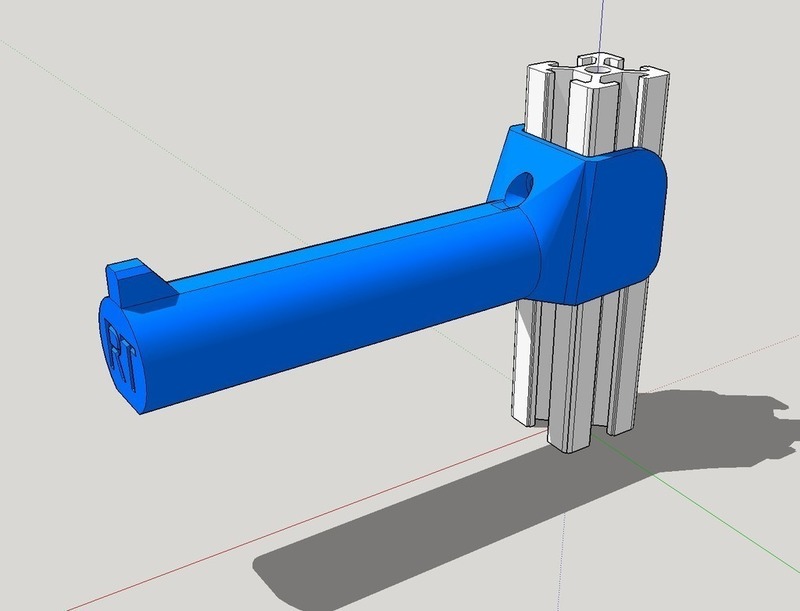

SummaryMy Kossel kit had an acrylic spool holder that broke when I caught the power cord on it. So I needed a replacement. I modeled this in SketchUp. For 1kg rolls of filament that are up to 70mm wide. Snaps onto 2020 rail and mounts with an M3x12 screw and drop-in t nut.InstructionsPrinted with a 0.4mm nozzle at .3mm layer height. 20% fill with two perimeters. No supports. Very solid to hold kilo roll. Needs one (1) M3x12 screw and an M3 drop-in t nut to mount in the 2020 extrusion. Add the screw and the t nut before you snap it onto the rail. Twist up towards the screw hole to remove if you for get the add the mounting screw.
Loading prints...
Spool holder for 2020 extrusion
Creative Commons Attribution-NoDerivatives
You can download, share, and use commercially, but you cannot change the material in any way or use it to make something new.
Licensed under CC BY-ND
Files Included
1 downloadable file:
Downloaded: 159 times
