TEVO tarantula X belt tentioner
Free

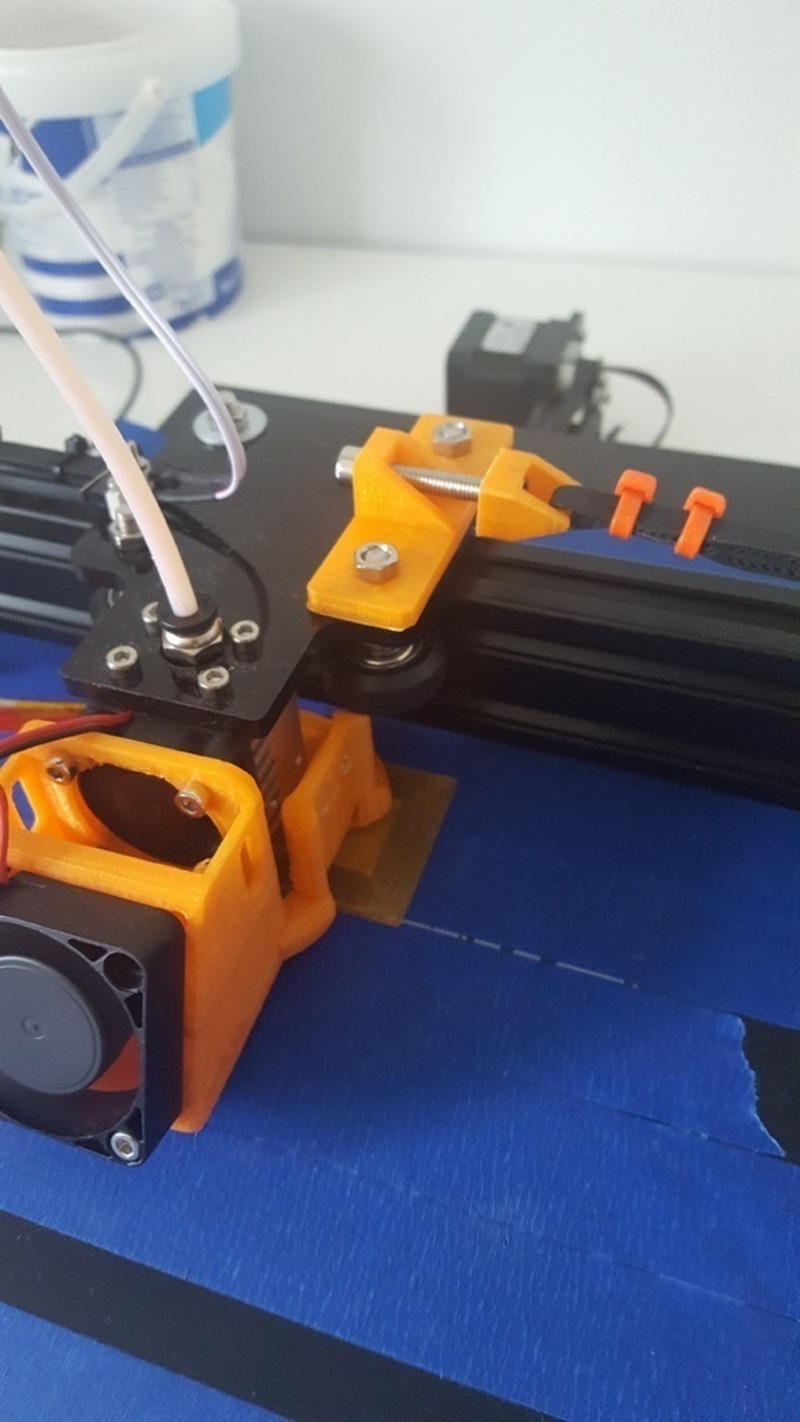

SummaryMade this simple X belt tentioner to be used directly with the stock X carridge with the TEVO Tarantula printer. This is a resourse friendly mod since it dosn't use a whole lot of filament to print.Print SettingsPrinter: Tevo tarantulaRafts: NoSupports: NoResolution: 0.2Infill: 60%Notes: Printed with a 6mm brim in PLA. 210C and 50C bed.How I Designed ThisJust saw that the bolts on the X carridge were sticking up a few mm so I thought I would use that to my advantage with this minimalistic mod. All you need to supply is a M5 bolt and nut to use as the tentioner.

Loading comments...

Loading prints...

TEVO tarantula X belt tentioner

likes
3 collections
Creative Commons Attribution-NonCommercial-ShareAlike

You can distribute, remix, adapt, and build upon the material in any medium or format for noncommercial purposes only, with attribution and under the same license.

CC BY-NC-SA Licensed under CC BY-NC-SA
Files Included

3 downloadable files:

View 3D
TEVO_belt_tentioner_X_beltholder.stl
STL Model
~1-5 MB
File size
View 3D
TEVO_belt_tentioner_clamp.stl
STL Model
~1-5 MB
File size
View 3D
TEVO_belt_tentioner_X_carridge.stl
STL Model
~1-5 MB
File size
Free download - login required
Downloaded: 75 times
