Mini Hood Scoop with turbine
Free

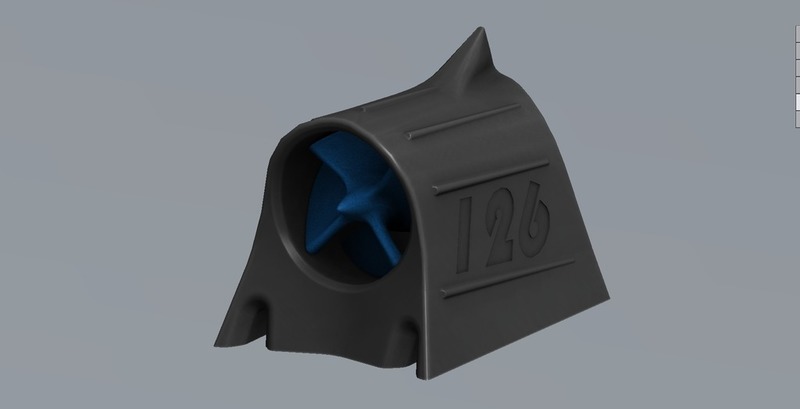

SummaryToys for big boyz. We used to put small propellers on the handlebars of our bicycles when we were small. Now we got older but we can still do the same thing to our cars or motorbikes. I've been designing some toys of this kind recently and this is the single turbne version of my mini double hood scoop. it has holes below for magnets along with suction channels. Because of the suction generated by these channels the thing sticks to the surface more as it goes faster thru the air. Can be used on metal surfaces of vehicles or stationary objects. I installed only 6 small magnets and tested the thing up to 110km/h without problems. If you want you may increase or decrease the number of magnets. leave the magnet holes connected the main turbine channel empty as they will create more suction while moving. The turbine is connected to the body via mini ball bearings inside so you can use it for years. https://youtu.be/GdPzdSDHvDM https://www.facebook.com/ozkal.ozsoy/videos/vb.701145747/10153782451105748/?type=3&theater

Loading comments...

Loading prints...

Mini Hood Scoop with turbine

like
0 collections
Creative Commons Attribution

You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given to the creator.

CC BY Licensed under CC BY
Files Included

2 downloadable files:

View 3D
Scoop_Single.STL
STL Model
~1-5 MB
File size
View 3D
Fan_Single.STL
STL Model
~1-5 MB
File size
Free download - login required
Downloaded: 93 times
