Robo3D Top mount spool holder Remix
Free

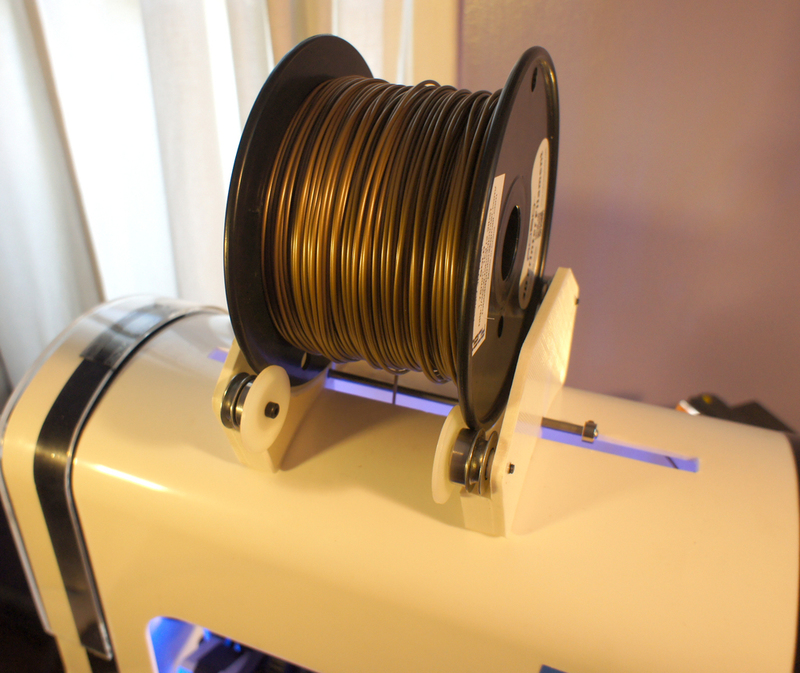

SummaryBearing smooth, adjustable width top filament feeder, based on an elegant design by sadahisa. I included both a solid and an open version that uses less material. https://www.youtube.com/watch?v=wYxuVQTHQLEInstructionsI modified this very elegant spooler a bit to accommodate different spool sizes and added a bar in the center (3/16") so as to relieve the filament from grazing against the slot at the top of the printer. The bearings are supported by 8/32 screws drilled and tapped. I ganged both screen door rollers and skatewheel bearings for versatlility and bracketed with fender washers. The bushing for the skatewheel bearings is a plastic tube from a hobby shop that happened to fit nicely. Also included in the photos is a single bearing design that should be pretty universal. Enjoy!

Loading comments...

Loading prints...

Robo3D Top mount spool holder Remix

likes
2 collections
Creative Commons Attribution-ShareAlike

You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given and your contributions are under the same license.

CC BY-SA Licensed under CC BY-SA
Files Included

2 downloadable files:

View 3D
Spool_Top_Side_Rail_V2_Cutout.STL
STL Model
54.8 KB
File size
View 3D
Spool_Top_Side_Rail_V2_Solid.STL
STL Model
40.7 KB
File size
Free download - login required
Downloaded: 32 times
