15mm ZMR unibody spacer 3mm arms with shortened standoffs
Free

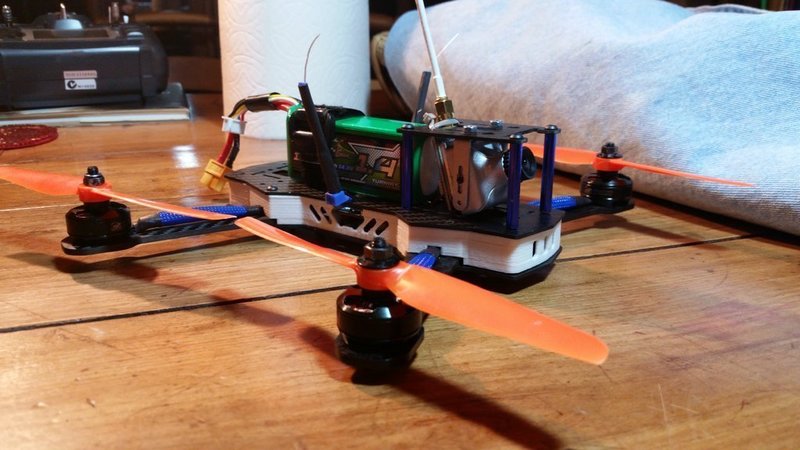

Summary This is a fairly thick ZMR 250 spacer designed to be used as a unibody, with all components between the two bottom plates of the ZMR. In addition to fattening the spacer from 10 to 15mms, I shortened the arm mounts from four holes to two holes, which I think is a massive improvement. Here is a list of reasons why: More interior space for components Less weight Less print time Arms can be bolted directly to bottom frame in the inner two holes, increasing rigidity and further decreasing weight from long bolts. Also, the little backstop fits over your spacers and can be used to prevent your battery sliding into your FPV pod in a crash. If your build is like mine, anyway.

Loading comments...

Loading prints...

15mm ZMR unibody spacer 3mm arms with shortened standoffs

like
0 collections
Creative Commons Attribution-NonCommercial-ShareAlike

You can distribute, remix, adapt, and build upon the material in any medium or format for noncommercial purposes only, with attribution and under the same license.

CC BY-NC-SA Licensed under CC BY-NC-SA
Files Included

6 downloadable files:

View 3D
USB_and_XT60_3mm_arms_ZMR_Unibody_v5_15mm.stl
STL Model
~1-5 MB
File size
View 3D
NO_HOLES_3mm_arms_ZMR_Unibody_v5_15mm.stl
STL Model
~1-5 MB
File size
View 3D
NO_HOLES_4mm_arms_ZMR_Unibody_v5_15mm.stl
STL Model
~1-5 MB
File size
View 3D
USB_PORTED_3mm_arms_ZMR_Unibody_v5_15mm.stl
STL Model
~1-5 MB
File size
View 3D
Unispacer_v3_15mm_3mm_arms_SHORT_STANDOFFS.stl
STL Model
~1-5 MB
File size
View 3D
zmrbackstopwider.stl
STL Model
~1-5 MB
File size
Free download - login required
Downloaded: 23 times
