Locked Differential Drive
Free
Locked Differential Drive - Thumbnail 1 Locked Differential Drive - Thumbnail 2 Locked Differential Drive - Thumbnail 3

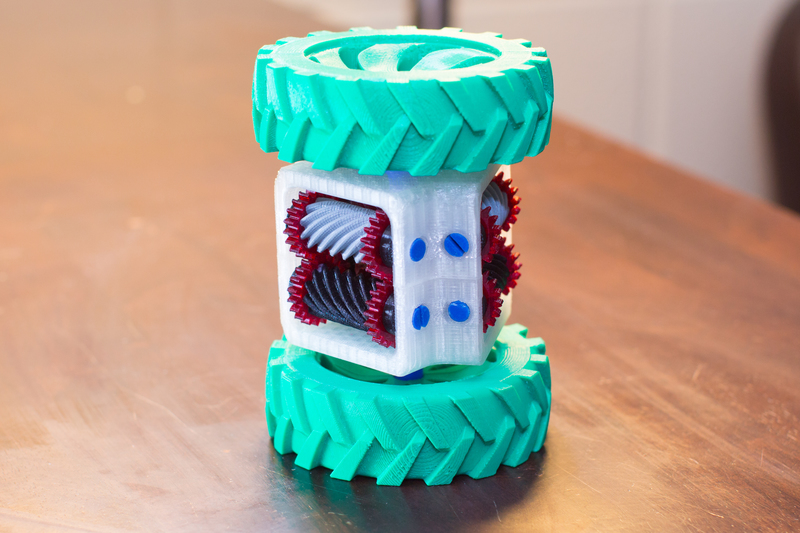

Locked differential which demonstrates the effectiveness of helical gears and small 3D printed threads. Plus it looks like a monster spider with wheels.. :)

Part quantities:

Satalite helical gear mirror _5 scale:              3

satalite helical gear _5 scale:                              3

Satelite washer spacer_5 scale:                       12

shell 1_5 scale gluetogether                              2           OR         Shell 1_5 scale:                  2

                                                                                                                           Retaining Clip:                  3

spur gear_5 scale:                                                    12

wheel V1_5 scale:                                                     4

central helical gear mirror _5 scale:               1

Central helical gear_5 scale:                               1

Central washer spacer_5 scale:                         2

drive shaft_5 scale:                                                   2

gear shaft_5 scale:                                                     6
