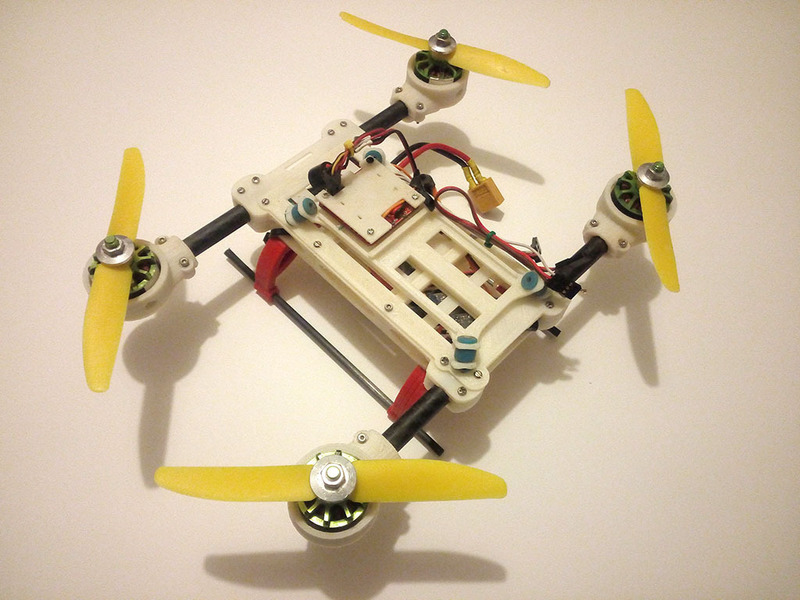

MUTquad, Plastic/carbon H microquad
Free
Summary Redesigned from 0. The mixture of plastic and carbon fiber gives a higher hardness. Vibration tray clean with space for placing a controller and a Mobius. Battery under the chassis to keep the center of gravity as centered as possible which allows more precise maneuvers. Space to locate the ESC and other electronic inside the chassis. Available in two sizes supported by motor diameter. Nou disseny desde 0. La barreja de plàstic i fibra de carbono li dona una duressa superior. Safata neta de vibracions amb espai per colocar una controladora y una mobius. Bateria sota el xasis per mantenir el centre de gravetat el més centrat posible que permet fer maniobres més precises. Espai per ubicar els ESC i altre electrónica dins el chasis. Disponibles dues mides de suport de motor segons diàmetre. Instructions Additional data: Arms tube 10mm and 65mm minimum length 16 females and 16 screws m2x18 8 screws and 8 females m2x10 4 rubber insulators 2 tubes of 4mm diameter and length as you want for skates Dades adicionals: Braços de tub de 10mm y longitud mínima de 65mm 16 tornillos m2x18 y 16 femelles 8 tornillos m2x10 y 8 femelles 4 gomes aillants 2 tubs de 4mm de diametre y longitud segons es vulgui per els patins

Loading comments...

Loading prints...

MUTquad, Plastic/carbon H microquad

like
0 collections
Creative Commons Attribution-NonCommercial-ShareAlike

You can distribute, remix, adapt, and build upon the material in any medium or format for noncommercial purposes only, with attribution and under the same license.

CC BY-NC-SA Licensed under CC BY-NC-SA
Files Included

5 downloadable files:

View 3D
Mutquad_landing_sky.stl
STL Model
31.9 KB
File size
View 3D
Mutquad_26mm_motor_support.stl
STL Model
164.6 KB
File size
View 3D
Mutquad_28mm_motor_support.stl
STL Model
151.7 KB
File size
View 3D
Mutquad_anti-vibration_area.stl
STL Model
248.8 KB
File size
View 3D
Mutquad_Main_body.stl
STL Model
296.8 KB
File size
