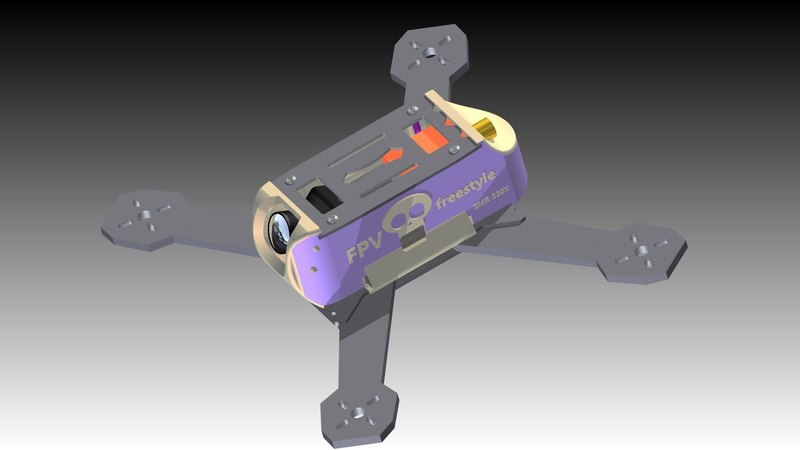

Item name: Spacer ZMR220x (SBS plastic material modifications to the ZMR250 )
The weight of the new version of simpletons just 21g. In simpleton provided for mounting camera with adjustable angle PZ0420M 15-55 degrees, PLUS OWL and Swift RunCam (5 and 25 degrees ). The hole for the FPV transmitter is drilled in place. (For installation need to cut the plate zmr250 just cut 2 each of 3 plates.) Also there is a mounting for the controller managing the flight operations centre distance standard of 30.5 mm. Rays from ZMR250 - one of the holes when installation need to drill out 0.5 mm. the weight of the entire frame ZMR220x with spacer 98g+21g=119g.
Material: SBS plastic
Weight: 21g
Layer Height: 0,1
Infill 20% + support
Loading prints...
ZMR250 - ZMR220x evolution
Creative Commons Attribution-NoDerivatives
You can download, share, and use commercially, but you cannot change the material in any way or use it to make something new.
Licensed under CC BY-ND
Files Included
2 downloadable files:
Downloaded: 7 times
