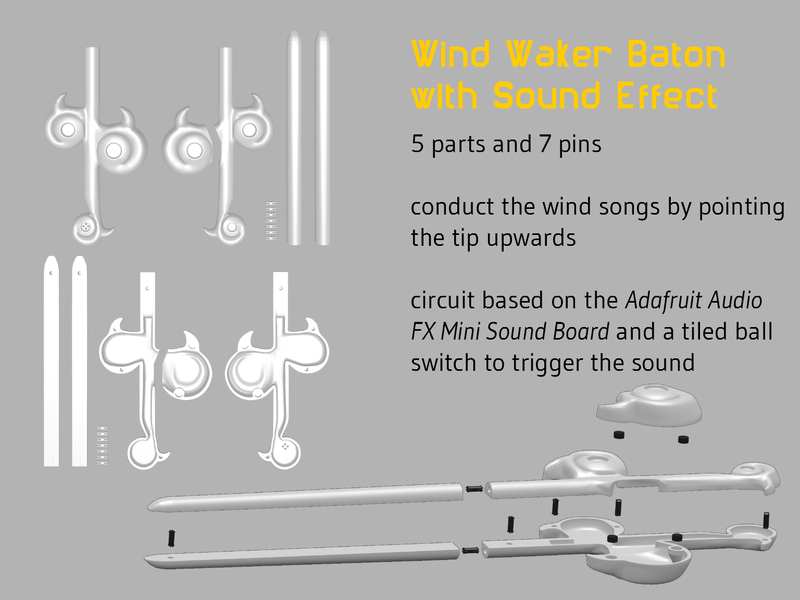

This design of the Wind Waker Baton is hollow to add a circuit that plays the wind songs every time the tip of the baton faces upwards. The Adafruit Audio FX Mini Sound Board is used to add the sound effect. A detailed instruction for this project can be found in the Assembly Guide.pdf
Size
ca. 37cm x 9.5cm x 3cm
Electronic Parts
- Adafruit Audio FX Mini Sound Board
- Mini Metal Speaker
- Adafruit Mono 2.5W Class D Audio Amplifier
- Lithium Ion Polymer Battery
- Tilt ball switch
- JST-PH 2-Pin SMT Right Angle Connector or use one end of a JST-PH Battery Extension Cable - 500mm
- Adafruit Micro Lipo - USB LiIon/LiPoly charger
Tools and Supplies
- solid core wire
- heat shrink tubing and insulation tape
- soldering iron and solder
- micro USB cable
- Wind Waker songs sound les
- hot glue and hot glue gun
- superglue or any other strong glue/epoxy you like
- 4 round magnets (3mm X 3mm X 6mm) (neodymium magnets with a grade N42 should be more than strong enough)
- sandpaper and/or files
- 3D printed Wind Waker parts
Print Settings
- All long parts are designed to fit diagonally inside a 150mmX150mm print bed
- Use 80%-100% infill for enough strength
- Support is needed for all parts except the staff halves
- Print slow and with small layer height (0.1mm) to achieve good detail and surface finish, especially if you do not want to post process the parts
Let me know if you have any questions.
Updates
- Added a thinner version of the shaft.
- Added a Adafruit LiIon/LiPoly Backpack and slide switch (Adafruit LiIon/LiPoly Backpack, SPDT Slide Switch)
