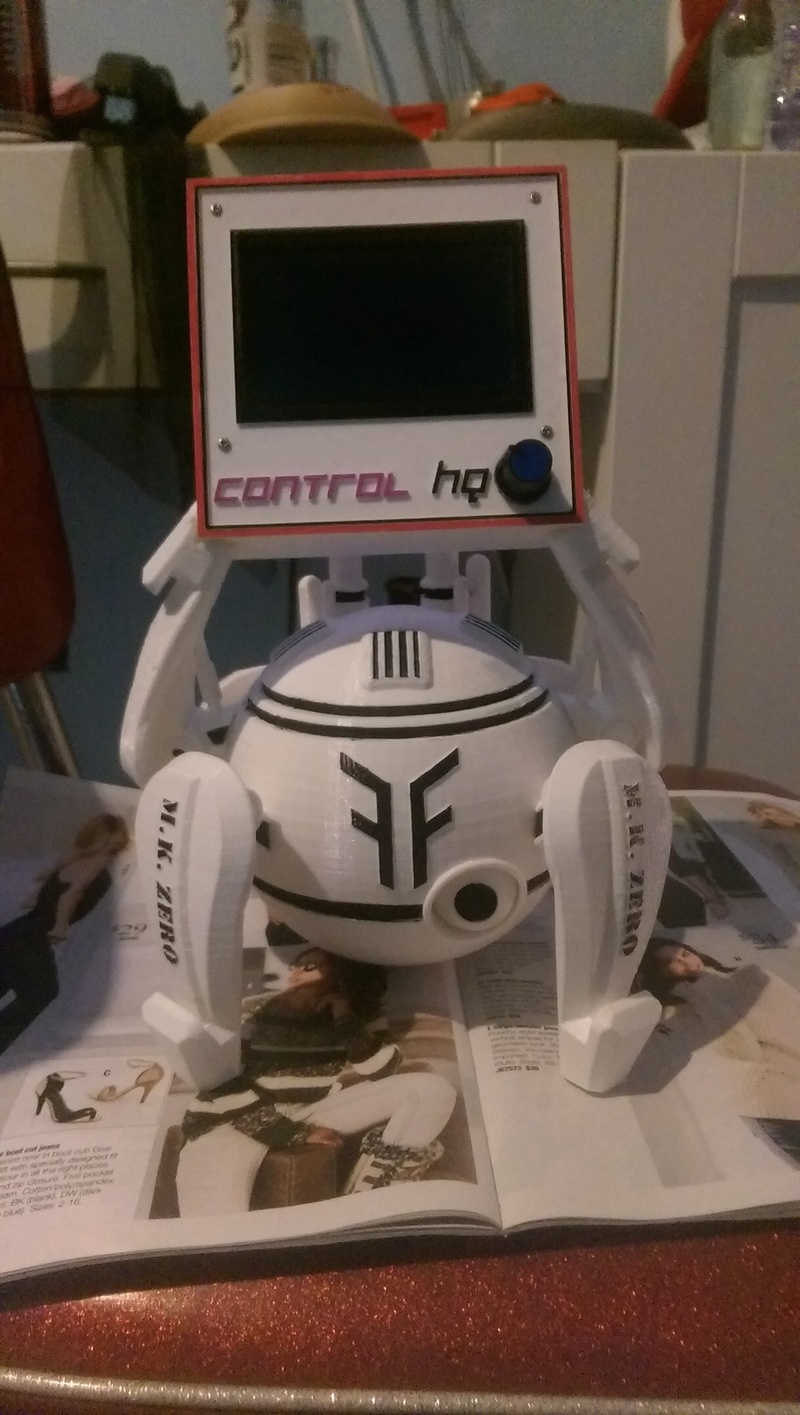

I designed this in order to hold the Full Graphic LCD Controller for my Robo 3D R1+.

I wanted to create something that I could be a little more creative with as the previous controller housing I made was a simple hinged box (and the hinge didn't work that well).

This print isn't quite complete. There are some critical changes I need to make before it is functional.

1. The box that holds the LCD needs to be deeper as the 8-pin connectors protrude to much to completely close it.

2. The 8-pin connector cable that originally came with the LCD controller I have are not long enough to reach from the bottom of my printer to the LCD controller.

3. Gluing it together was not as easy as I had anticipated. There are round extrusions on the legs that fit into holes on the body, but orientating them all perfectly is a challenge. I think I will change the shape to a square or triangle so it keys in.

I'll change the licence once I have a model that I can more confidently release.

This will be updated later as I fix it up!
