Screen Door Wheel
Free

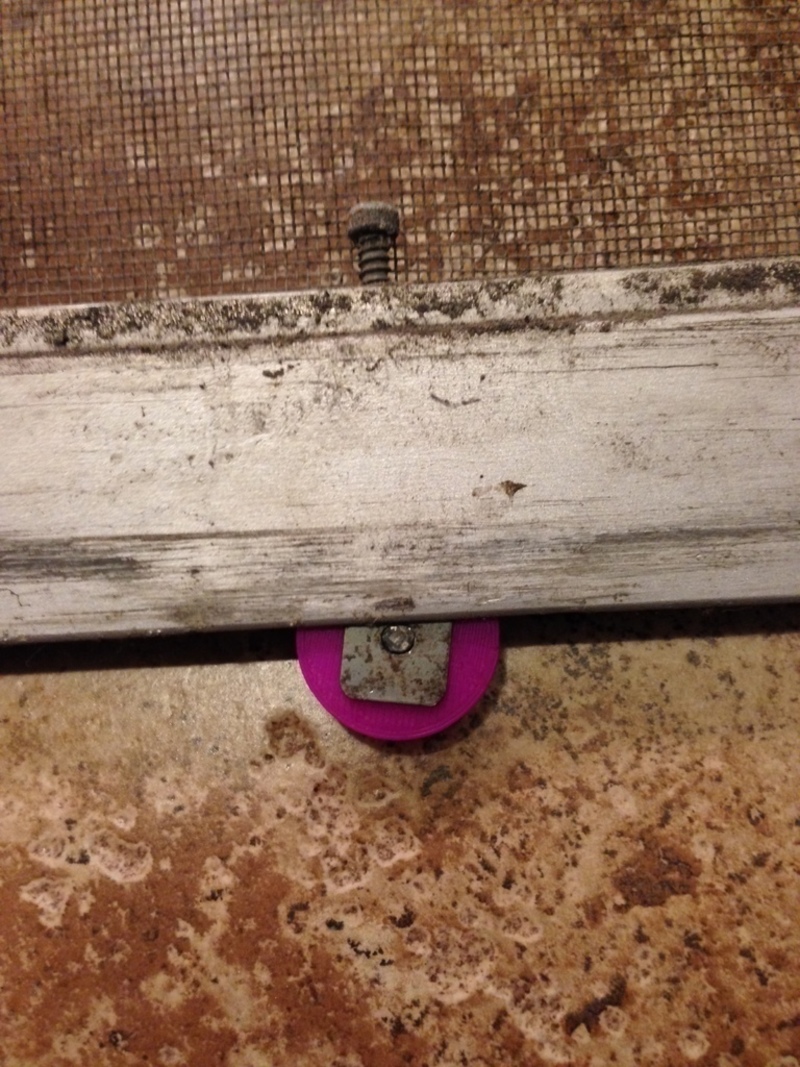

Summary This is a replacement wheel for a sliding screen door. As you can see from the picture, mine was quite worn out and ready to be replaced. Instructions It's very simple, I've broken the wheel into two parts to make it easy to print. There is no need to glue the two parts together since the bracket it mounts to already holds it together, but it won't hurt if you glued it either. Once printed, the two parts of the wheel should fit together and look more or less like the original. To get the screen door off, there should be two screws sticking out from both the top and bottom of the screen door. These screws tighten the wheels onto their tracks and also holds the door in place. If you loosen these, you'll be able to just lift the door off its tracks and pull it out. To get the original wheel off the mounting bracket, just take a flat head screwdriver and wedge it between the bracket and one side of the wheel. Add a little twist and the main axle should pop out of that side. Do this to both sides and you should be able to pull the old wheel off.

Loading comments...

Loading prints...

Screen Door Wheel

like
0 collections
Creative Commons Attribution-ShareAlike

You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given and your contributions are under the same license.

CC BY-SA Licensed under CC BY-SA
Files Included

2 downloadable files:

View 3D
screen_door_wheel_M.stl
STL Model
100.7 KB
File size
View 3D
screen_door_wheel_F.stl
STL Model
100.7 KB
File size
Free download - login required
Downloaded: 66 times
