Vacuum adapters
Free

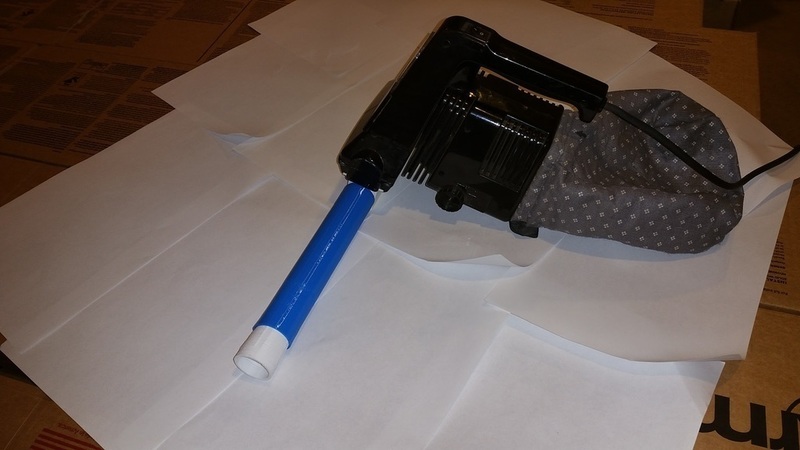

Summary I had an old perfectly good portable vacuum cleaner I never wanted to throw away even though I was missing an hose adapter. Now with my 3D printer (TAZ 6) I cna make my own adapter as they don't sell parts for this vacuum anymore. The white adapters I printed with ABS with HIPS suppoprt on a dual extruder. The blue hose was with Ninjaflex using my Flexistruder. The white adapters filament cost (ABS+HIPS) was $2.46. Estimated replacement cost (no longer available for this printer) $11.36(Part $6.86 shipping $4.48). estimated savings: $8.88 Print Settings Printer Brand: LulzBot Printer: TAZ 5 Rafts: No Supports: Yes Infill: 100% Notes: the outer walls of the tubing in all parts are either 36mm or 32mm depending on whether your inserting into or onto. I used a dual extruder for the adapter itself. It was with HIPS support that came right off. Post-Printing

Loading comments...

Loading prints...

Vacuum adapters

likes
0 collections
Creative Commons Attribution

You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given to the creator.

CC BY Licensed under CC BY
Files Included

3 downloadable files:

View 3D
Adapter2.stl
STL Model
~1-5 MB
File size
View 3D
Connector_template_30mm.stl
STL Model
~1-5 MB
File size
View 3D
hose20cm36mm.stl
STL Model
~1-5 MB
File size
Free download - login required
Downloaded: 20 times
