Summary

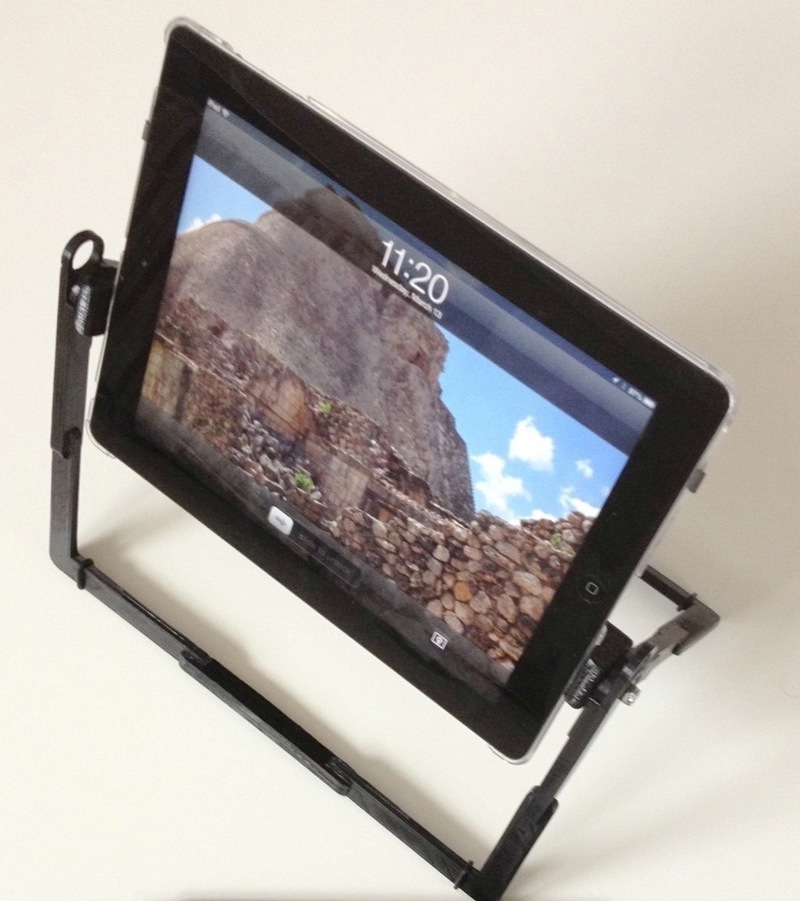

The iPad HandleStand is a protective case that has been hacked with a pair of 3D printed handles that hinge open into an A-Frame adjustable stand. It works with a Smart Cover or with the Logitech UltraThin Keyboard Cover, and it tilts to any angle. Additional information can be found on the blog: http://interlockroc.org/2013/0...

• -(1) Hinge Set (containing 2 brackets and 4 hinge members).
• -(2) Handles (each containing parts for a 3-piece handle and a MicroBeaner for the shoulder strap).
• -(1) Polycarbonate iPad case that snaps on at the corners such asamazon.com/PoeticBasic-Smart-Cover-Slim-Fit-Crystal/dp/B007JBN6NQ
• -(2) Stainless steel 6-32 x .75 inch oval phillips machine screw (attach hinges to brackets)
• -(2) flat-head 6-32 x .5 inch machine screw (attach brackets to polycarbonate case)
• -(4) 6-32 lock nuts with nylon inserts
• (4) #10 o-ring provide friction for hinges
• (4) #41 o-ring provide friction against a table
• -(1) .125 inch parachord 5 feet long

• -Use CAUTION during solvent bonding!
• -Use eye protection.
• -Work in well ventilated area!
• -The solvent dissolves many things, and the wet plastic stains whatever it touches!
• -Use latex NOT vinyl gloves!
• -Use aluminum foil on work surface!

• -Use great care to go back and coat the whole part for a uniform glossy finish (especially if parts were sanded), but do one end and hang to dry (for a few minutes) before doing the other end!
• -The solvent can also be used to heal delaminated parts, but BE CAREFUL!
