Micro Quad-racer 2S 90mm polycarbonate
Free

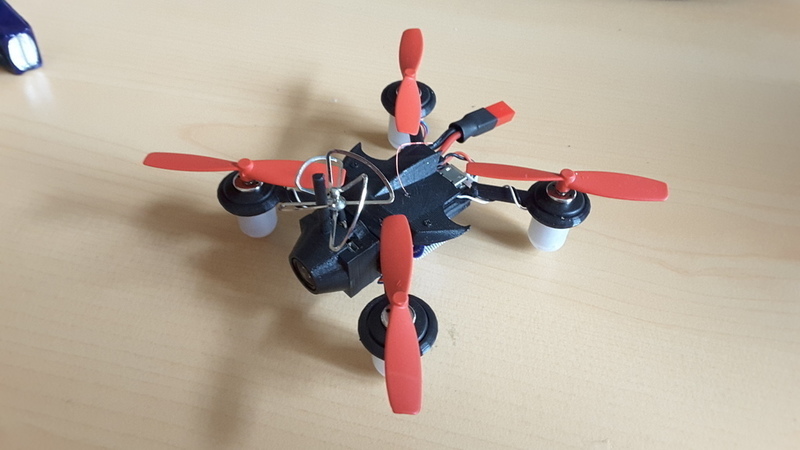

Summary The light and airy architecture of the 90mm frame has been possible due to the soliditer and stiffness of the polycarbonate. Be very careful in flight with other filaments Frame in polycarbonate Ultimaker 90 mm center distance with a flight controller sp racing evo . It is fully configurable and cleanflight on all flights modes F.C. :http://bit.do/SP-racing-evo-hexa Coreless: http://bit.do/coreless-chaoli-8-5x20-2S Recpteur: http://bit.do/DSM2-5CH-2-4Ghz-RC-Micro-Receiver-With-6-CH-PPM Camera 25mw: http://bit.do/Camera-TX01-Super-Mini-aio_8G-40CH-25MW-VTX-600TVL Camera 200mW: http://bit.do/camera-Super-Mini-AIO-5-8G-40CH-200mW-VTX-600TVL Prop: http://www.rakonheli.com/40mm-3-blade-propeller-2cw-2ccw-1mm-shaft-white.html lipo: 300mha 2S : +/- 3-4min screws: 4x M1.6 x 5mm Attention transparent polycarbonate in Ultimaker is very fragile compared to black which is very resistant !!!! https://www.facebook.com/Microdure/ Print Settings Printer Brand: Ultimaker Printer: Ultimaker Original Rafts: Yes Supports: Yes Resolution: 0.100 mm Infill: Polycarbonate Ultimaker

Loading comments...

Loading prints...

Micro Quad-racer 2S 90mm polycarbonate

like
0 collections
Creative Commons Attribution

You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given to the creator.

CC BY Licensed under CC BY
Files Included

4 downloadable files:

View 3D
Mano_racer_90mm.stl
STL Model
~1-5 MB
File size
View 3D
Nano_racer_90_mm_protection_camera.stl
STL Model
~1-5 MB
File size
View 3D
Nano_racer_90mm_fix_lipo__300mha.stl
STL Model
~1-5 MB
File size
View 3D
Nano_Racer_90_mm_Top_plate.stl
STL Model
~1-5 MB
File size
