Prusa i3 belt tensioner (and other printers should work)
Free

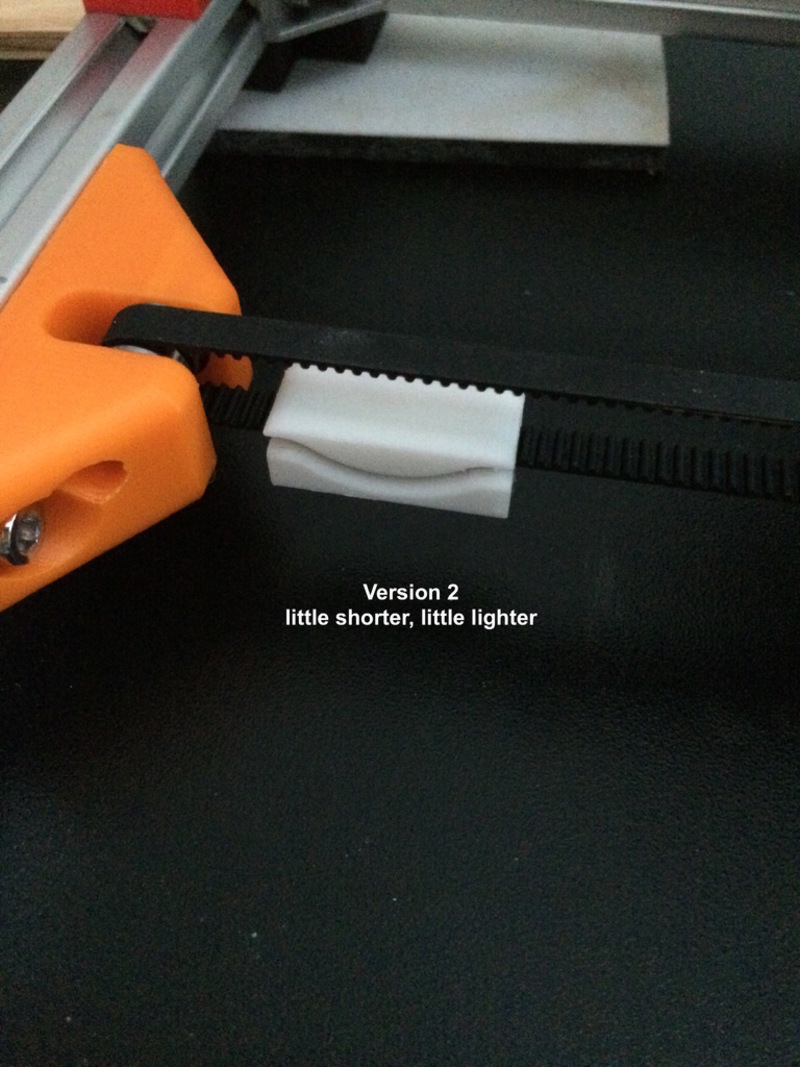

Summary Note - all these types of clip on belt tensioning systems are a Temporary fix!! they will all cause vibrations in the belt which will feed back into the print a bit. proper stationary tensioning system is needed for quality prints. ••version 2 uploaded today July 13, 2016, lighter and a tad shorter. Noticed it high speed, small movements of the printer the belt vibrated and the tensioner was knocking into the carriage belt holder, didn't hurt anything was just unnecessary, annoying noise.•• Kinda took the idea from this one. felt it was actually adding too much tension on the belt so i made a lower tension version. http://www.thingiverse.com/thing:81991 just a tad lighter tension on the belt than most. I was either getting too tight or too loose with the belt just trying to get it right during install.. tried the one above and it was really yanking on the whole system.. this is just a slight tad less.. (PS, ya.. got to vacuum around the printer!! LOL )

Loading comments...

Loading prints...

Prusa i3 belt tensioner (and other printers should work)

likes
0 collections
Creative Commons Attribution

You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given to the creator.

CC BY Licensed under CC BY
Files Included

2 downloadable files:

belt_tension_block_v1.stl
STL Model
~1-5 MB
Est. size
TensionerV2.stl
STL Model
~1-5 MB
Est. size
Free download - login required
Downloaded: 139 times
