Very Customizable Ruler - Secret Geneva Machanism Pencil Box - T
Free

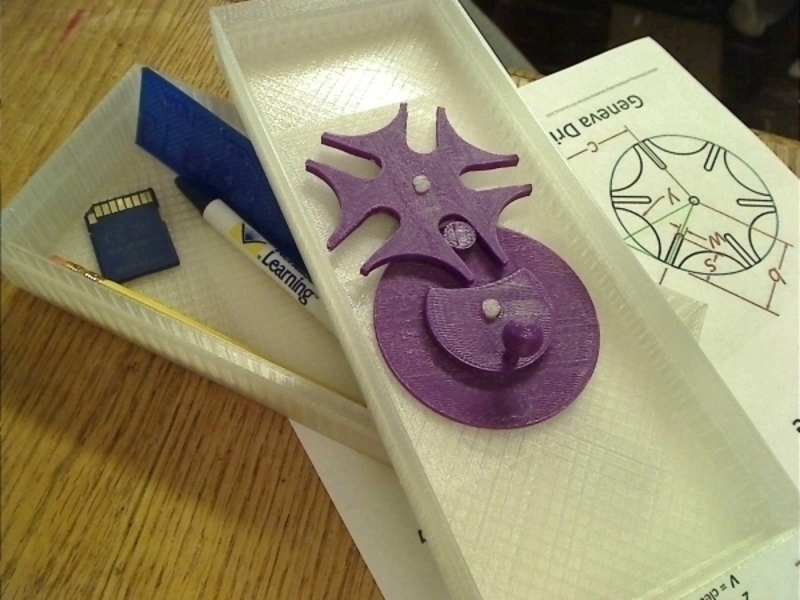

Summary This is a tour de force #backtoschool set! Make a very fancy Ruler to the exact specifications you want. The pencil case opens to reveal the heart warming Geneva Mechanism! And who does not want a trapped sphere pencil topper. I do so I made one. video here of box http://youtu.be/cQUxT1wyrOY also to help educate your friends and family, best I have found under 2 minute slightly amusing, simple & straight forward explanation of home 3D printing, (made by and for schools): http://www.youtube.com/watch?v=YpHv19jdloI Instructions --the ruler is a .scad file, you can make pretty much any ruler you want, key chains, normal rulers, sample print swatches. i took this file far beyond the basic one Stu121 started me off with. -- the pencil case was made in tinkercad, then I added a secret to the inside of the lid using Geneva mechanism from jessed, I improved pins and spacing of the original. -- pencil topper is a simple add on to the file from liefting Printed these in PLA 0.2mm layer height, 20%fill, wall=2Xnozzle (in this case 0.7mm wall since I use the MakerGear M2 with 0.35mm nozzle)

Loading comments...

Loading prints...

Very Customizable Ruler - Secret Geneva Machanism Pencil Box - T

likes
1 collection
Creative Commons Attribution-ShareAlike

You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given and your contributions are under the same license.

CC BY-SA Licensed under CC BY-SA
Files Included

4 downloadable files:

View 3D
Ruler-custom-mark-v7-imagination.stl
STL Model
~1-5 MB
File size
View 3D
pencil_top-ball_in_box.stl
STL Model
~1-5 MB
File size
View 3D
pencil-box.stl
STL Model
~1-5 MB
File size
View 3D
geneva-wheels.stl
STL Model
~1-5 MB
File size
