Important:

Printing of the transmitter tray including attached STL is optimized to the type of a printer prusa i3MK2 with the size of pad (x,y) 250x210mm.

When properly transfered the attached stl files can be printed on a 3D printer with the minimum size of pad (bed) 240x200 mm. The weight of the assembled tray is not higher than 250 g.  (Infill percentage = 13-15%, primary layer hight = 0,2 mm.)

The parts no. 1 and no. 4 must be print with support. By printing the other parts the support is not necessary. Before assembly, some of the edges and holes of the parts must be slightly cropped. A superglue can be used. The PLA material was used by the test of 3D print of the transmitter tray. Protect from exposure to high temperatures, especially in sunlight. The disigner is not liable for demages caused by using the tray.

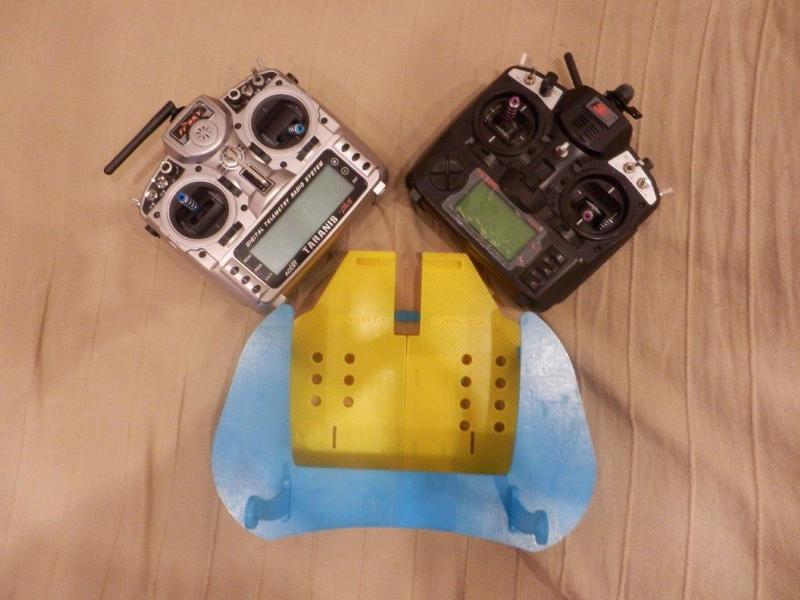

The tray consists of 10 kinds of parts (1-10) that are printed on a 3D printer with the minimum size of pad  240 x 200 mm. The parts no. 7, 8 a 9 are changable according to user needs. The part no. 10 can be used in case of a transmitter with antenna on the back side of the tray, otherwise use the part no. 5.
