DSLR Shoulder Rig (15mm Rail) Remix
Free

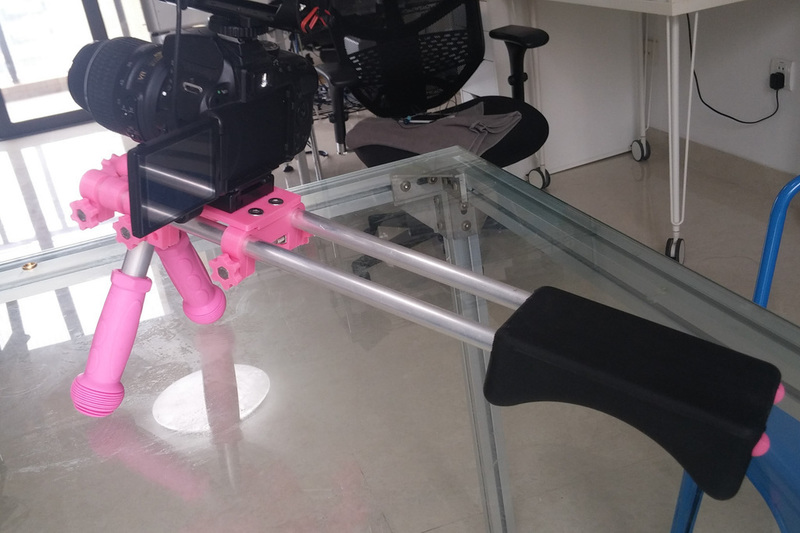

Summary This is the first of two remixes I did of http://www.thingiverse.com/thing:29677 for a film class I took last month. The other one is here: http://www.thingiverse.com/thing:1594004 For this one the changes are very, very minor. I just made the handles stack together a bit more neatly and it’s made for a camera with a flip out viewfinder so does not need the offset pieces. I also made two sleeves so you can use standard 22.2mm bicycle handlebar grips. I was able to find the foam shoulder pad on TaoBao for about $5 so it did not make sense to print that part. Amazon seems to have similar pads but for a bit more money: http://amzn.com/B00ENYMQ8I http://amzn.com/B00OFJMKWS As in the original you’ll need 15mm and 20mm aluminum tubing, the stuff I used a lot thicker than I needed I think (15mmOD/10mmID and 20mmOD/12mmID). The end plugs reflect this- but you don’t really need them. It just looks cleaner. The thumbwheels are here: http://www.thingiverse.com/thing:11848 The link to the original model details the required hardware. Parts list: 2 Piece: DSLR_Shoulder_Rig_handlebar_adapter 1 Piece: DSLR_Shoulder_Rig_close_hand_grip_A 1 Piece: DSLR_Shoulder_Rig_close_hand_grip_B 2 Piece: DSLR_Shoulder_Rig_close_hand_grip_C 1 Piece: DSLR_Shoulder_Rig_simple_rail_spacer 2 Piece: DSLR_Shoulder_Rig_std_clamp 2 Piece: 20mm_end_plugs 4 Piece: 15mm_end_plug 1 Piece: camera_plate_1-4_20 or camera_plate_3-8
