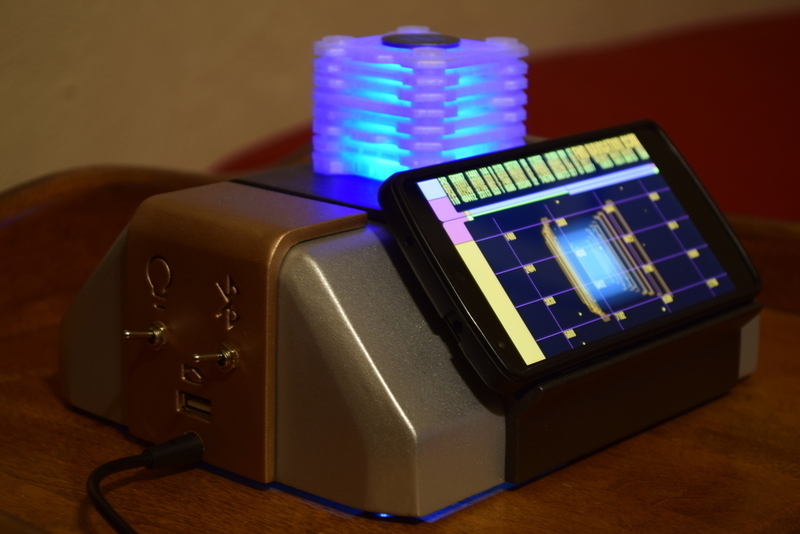

Star Trek Inspired Phone Dock
Free
Summary This is my interpretation of ThinkGeek's April Fools 2016 product, the Star Trek White Noise Sleep Machine. Printing was the easy part; doing all the finish work to make it look like it was actually from The Next Generation was another story entirely. I documented the build in an imgur gallery, which should help if anyone wants to attempt building their own version. I also have a demonstration video on YouTube which shows the lights and some of the software functions: https://www.youtube.com/watch?v=EuYR8m5SDVc Print Settings Printer Brand: Printrbot Printer: Simple Black Rafts: No Supports: No Resolution: 0.2 - 0.3mm Infill: 10 - 35% Notes: If you want to print your own, you'll need to print all three base_ pieces at a decent infill and whatever layer height you have the patience for. I did 35% at 0.3 layers. For the cube you need 7 copies of cube_cell, and one of cube_base and cube_core. These should all be printed in a translucent or glow in the dark filament, and at a low infill if there will be LED lighting added. You will also need 4 copies of cube_pin, and 28 copies of cube_spacer. If you want to do the electronics you'll also need led_mount, and the control panel with the switch openings. If you want to do a print without the electronics, use the blank control panel and just screw the cube right to the top of the base.

Loading comments...

Loading prints...

Star Trek Inspired Phone Dock

likes
4 collections
Creative Commons Attribution-NonCommercial-ShareAlike

You can distribute, remix, adapt, and build upon the material in any medium or format for noncommercial purposes only, with attribution and under the same license.

CC BY-NC-SA Licensed under CC BY-NC-SA
Files Included

11 downloadable files:

View 3D
panel_blank.stl
STL Model
~1-5 MB
File size
View 3D
cube_cell.stl
STL Model
~1-5 MB
File size
View 3D
led_mount.stl
STL Model
~1-5 MB
File size
View 3D
cube_base.stl
STL Model
~1-5 MB
File size
View 3D
base_right.stl
STL Model
~1-5 MB
File size
View 3D
base_left.stl
STL Model
~1-5 MB
File size
View 3D
cube_pin.stl
STL Model
~1-5 MB
File size
View 3D
cube_spacer.stl
STL Model
~1-5 MB
File size
View 3D
cube_core.stl
STL Model
~1-5 MB
File size
View 3D
base_saddle.stl
STL Model
~1-5 MB
File size
View 3D
control_panel.stl
STL Model
~1-5 MB
File size
Free download - login required
Downloaded: 128 times
