Pink Stiffy
Free

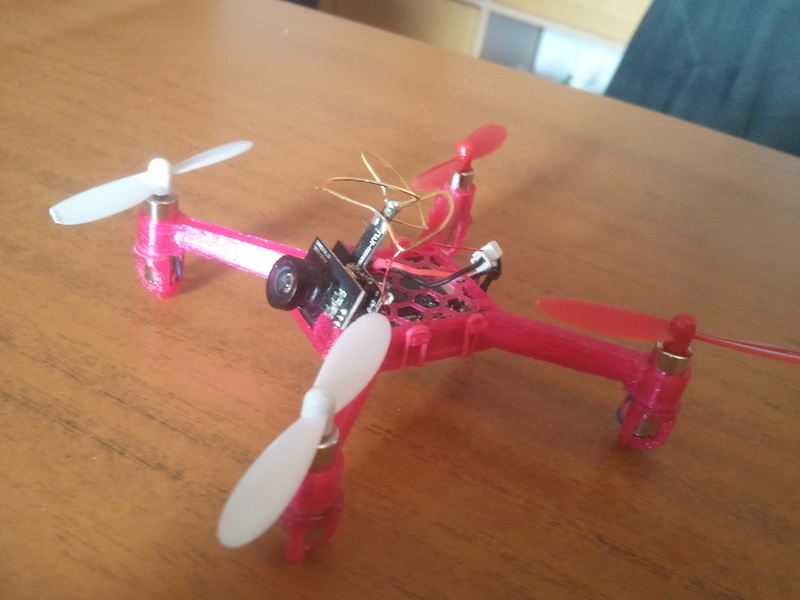

Summary An experiment in printing hollow arms and a monocoque chassis for a very light weight, indoor brushed quadcopter. I was aiming for the strength/crashability of my lightweight Gnat design, but with improved stiffness and handling. Designed to be printed in PETG with 7 X 20 mm motors, a recycled Nano QX flight board and 300mAh 1S Lipos. It will take most of the 25 mW cameras/transmitters combos on the market. I seriously doubt this will work in ABS or PLA, but in PETG it has flown successful evenings indoor racing at our local group. Even though the arms are only 1 mm thick tubes (the motor wires run down the inside of the arms) it has survived numerous impacts with gates, walls and the ground, Print Settings Printer: Qidi Tech 1 Rafts: No Supports: No Resolution: 0.25mm layer, 4 perimeters Infill: 20%

Loading comments...

Loading prints...

Pink Stiffy

likes
0 collections
Creative Commons Attribution

You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given to the creator.

CC BY Licensed under CC BY
Files Included

2 downloadable files:

View 3D
stiffy_base.stl
STL Model
243.1 KB
File size
View 3D
stiffy_frame.stl
STL Model
17.5 MB
File size
