Watch-style link bracelet with magnetic closure
Free

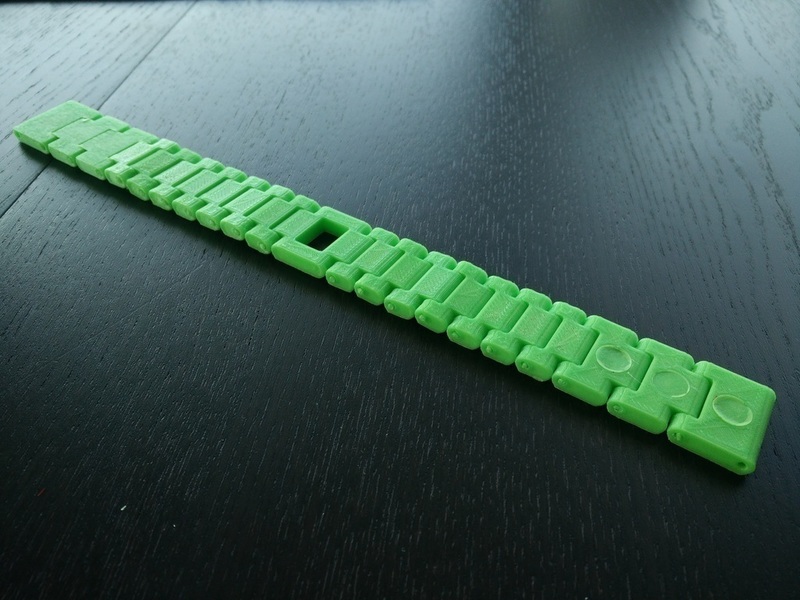

Summary This is an update of my previous project Watch Links with 1.75mm Filament pins. The original project was intended to be an upgraded strap/bracelet for my then wristwatch. That watch has since given up the ghost before I got around to designing a proper adapter link. This time around, it's a standalone bracelet, using neodymium disc magnets to hold the ends closed. It was kind of inspired by the Apple watch's optional magnetic band. My magnet links are designed to fit a 8mm diameter disc magnet with a height up to ~2.7-2.8 mm. Instructions I had very good results with these settings on my Bukito using PLA: 0.2mm layer height 1mm wall thickness 1mm top/bottom thickness 40mm/s print speed 180C extruder temp No support or raft needed. The disc caps should just press-fit over your disc magnet. If the fit feels too loose, feel free to reinforce with your preffered glue.

Loading comments...

Loading prints...

Watch-style link bracelet with magnetic closure

like
1 collection
Creative Commons Attribution-ShareAlike

You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given and your contributions are under the same license.

CC BY-SA Licensed under CC BY-SA
Files Included

5 downloadable files:

View 3D
watch_link_magnetic_cap.8mm_disc.stl
STL Model
~1-5 MB
File size
View 3D
watch_link_magnetic.8mm_disc_rounded.stl
STL Model
~1-5 MB
File size
View 3D
center_link_rounded.stl
STL Model
~1-5 MB
File size
View 3D
watch_link_rounded.stl
STL Model
~1-5 MB
File size
View 3D
watch_link_magnetic.8mm_disc_rounded_end.stl
STL Model
~1-5 MB
File size
Free download - login required
Downloaded: 150 times
