support coulissant pour laser 3dpburner
Free

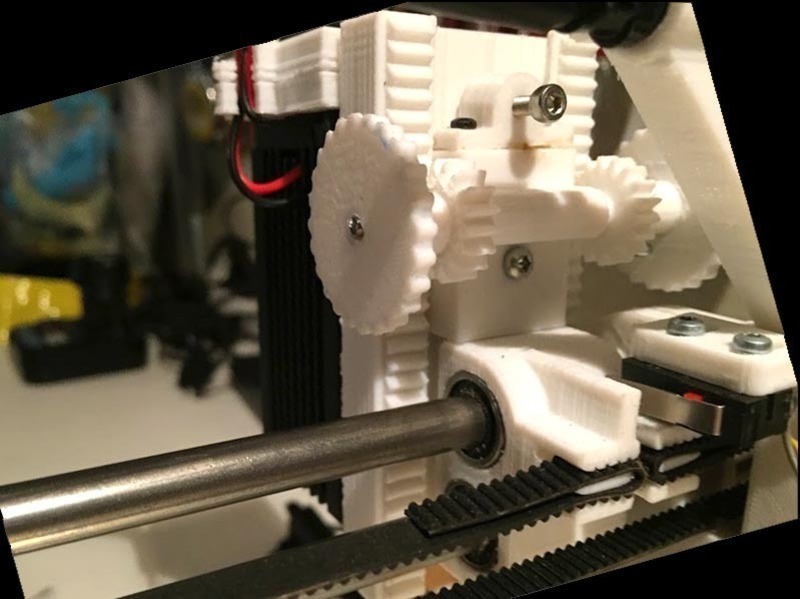

Summary this is an add-on for the 3dpburner original files. it allows you to set the level of your laser without unscrew the laser. it works with any laser, but it is set fot a 2000mw laser you can find on aliexpress: https://www.aliexpress.com/item/New-arrival-High-Power-12V-2W-2000mW-Focusable-Blue-Laser-Module-445nm-450nm-with-TTL-Wood/32439376930.html?spm=2114.10010108.1000014.5.Lncq9m&scm=1007.13338.46329.0&pvid=433444d2-69b2-4907-b390-25fc758f3628&tpp=1 you will need a: 63 mm axis long and 3mm diameter 1 20x3 mm screw 1 3mm nut 4 12x3 mm screw optional: 2 screws to block gears on axis the cable guide part is just insert on the fan. If you use the X axis switch you will have to compensate it, cause when the laser is in low position, it touch the arm of the X axis preventing the swith to work. Print Settings Printer Brand: RepRap Printer: hephestos prusa I3 Rafts: Doesn't Matter Supports: Doesn't Matter Resolution: 0.2

Loading comments...

Loading prints...

support coulissant pour laser 3dpburner

like
0 collections
Creative Commons Attribution

You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given to the creator.

CC BY Licensed under CC BY
Files Included

5 downloadable files:

View 3D
bloc_cable.STL
STL Model
55.9 KB
File size
View 3D
platine_fix.STL
STL Model
81.1 KB
File size
View 3D
rondelle_3C.STL
STL Model
21.2 KB
File size
View 3D
coulisse.STL
STL Model
251.1 KB
File size
View 3D
molettes.stl
STL Model
1.2 MB
File size
