Mechanical Paradox
Free

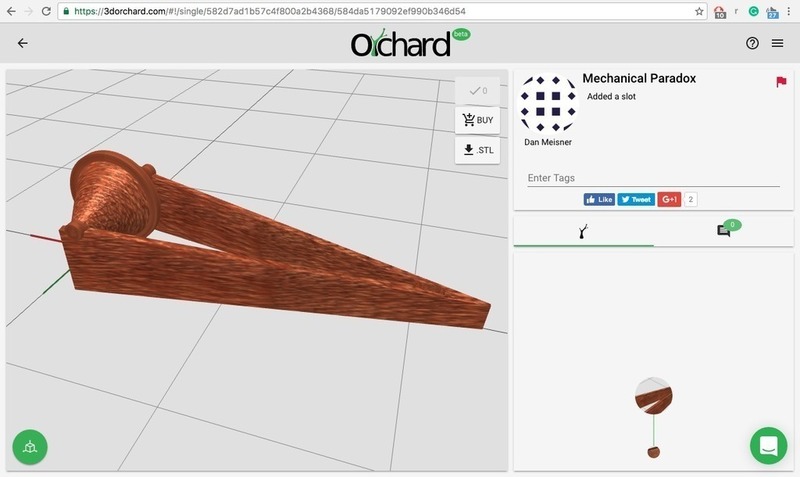

Summary Originally designed on Orchard (https://3DOrchard.com), this Mechanical paradox is inspired by the up-hill roller: (https://plus.maths.org/content/defying-gravity-uphill-roller). This device could help in classrooms, illustrating concepts of gravity, center of mass, momentum, and friction, to name a few. This hasn't been tested. The incline may need to be reduced or the angles modified. Luckily, the model is easy to edit/print at its original location: (https://3dorchard.com/#!/single/582d7ad1b57c4f800a2b4368/584da5179092ef990b346d54) How I Designed This Sketching the cut profile for the notch in the Orchard modeling interface (https://3dorchard.com/#!/single/582d7ad1b57c4f800a2b4368/584da5179092ef990b346d54) Pulled (extruded) the 2D sketch into a 3D object to create a block, cut the block. ( Model can be found at: https://3dorchard.com/#!/single/582d7ad1b57c4f800a2b4368/584da5179092ef990b346d54) Designed in the Orchard modeling interface: https://3dorchard.com/#!/single/582d7ad1b57c4f800a2b4368/584da5179092ef990b346d54

Loading comments...

Loading prints...

Mechanical Paradox

likes
0 collections
Creative Commons Attribution

You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given to the creator.

CC BY Licensed under CC BY
Files Included

2 downloadable files:

View 3D
part-pwrk9-1.stl
STL Model
41.5 KB
File size
View 3D
part-6hia4i-1.stl
STL Model
344.4 KB
File size
Free download - login required
Downloaded: 34 times
