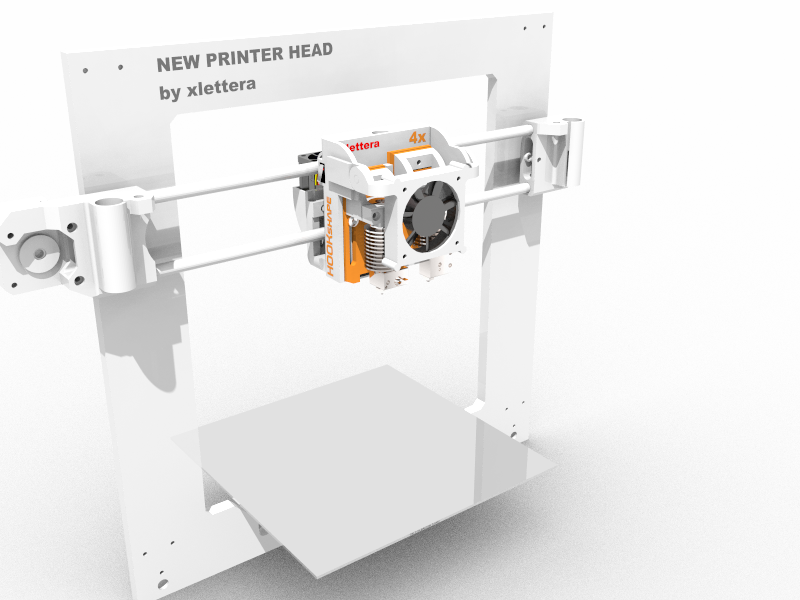

HOOKSHAPE - 4X FASTER 3D PRINTER HEAD new

RECENT CHANGES (click here)

(The first and original 3D Printer Head with self Z-Axis calibration in a dual different HotEnds configuration)

I started this project with one thing in mind: simplicity.

Simplicity is necessary to release your creativity. Think of what you really want to do and concentrate on it without worrying about technical problems linked to your 3D Printer. Just 2 screws to remove an Hotend. A click to calibrate both.

Sometimes you need precision, sometimes you need speed(4X faster). HOOKSHAPE gives you both. Then, you can decide from your software which one you need first and start printing without changing the hardware.

I considered “simplicity” even during the printing process of the HOOKSHAPE in itself. The many parts are with no “hangover designs.” This means that you do not need any “support material.” No waste of time and plastic.

Simplicity – even for the price. You pay what you need. I decided to use only inexpensive and common available parts which are easy to replace, but this does not mean that they are not of good quality. You can start with just one Hotend and in a second time, you can add another one.

Putting many aspects into an organic solution was my aim: a product that is not only functional but has its own style and design.

FEATURES

• self Z-Axis calibration procedure (Z-Calibration is easy)
• no Z-Axis height loss with different HotEnds
• made with standard components (inexpensive, better quality and easy to find)
• HotEnd software selection (no waste of time)
• easy maintenance in every situation (accessible/user-friendly)
• compact design (minimize the loss of the print area)
• lightweight (reduced inertia)
• simple and stable (HOOKSHAPE holds everything together, low vibrations)
• adaptable and expandable (many configurations possible)
• compatible with prusa/reprap i3 like 3D printer (~36,4mm internal distance between rods)
• no hangover design (ready to be printed)

SPECIFICATIONS

• support dual different HotEnds
• 4X time faster with Volcano HotEnd (0.6mm nozzle)
• precise with E3D-V6 HotEnd (0.4mm nozzle)
• inductive proximity sensor 4mm (LJ12A3-4-Z/BX) for auto level print board
• back auxiliary fan 40x40x10mm (12V)
• 3 linear ball bearing (LM8UU) for low friction motion
• distance mounting rods (adjustable: ~4,8mm tolerance)
• low weight ~430 g. (HotEnds and hardware included)

YouTube VIDEOS

HOOKSHAPE - presentation (features and advantages)

HOOKSHAPE - self Z-Axis calibration procedure (proprietary method)

HOOKSHAPE - self Z-Axis calibration (double test)

HOOKSHAPE - self Z-Axis calibration procedure (real demo)

HOOKSHAPE - printing a cup with VOLCANO (4X faster, 16 minutes) - PART 1/2

HOOKSHAPE - printing a cup with E3D-V6        (precision, 1 hour)           - PART 2/2

PRINT SETTINGS

• Material: PLA 210°, Heated bed 60°
• Rafts: No
• Supports: No
• Resolution: 0.4
• Infill: 60%

REQUIRED HARDWARE

Beside the PLA for printing the parts you will need the following items that are very easy to find:

• 3x  LM8UU
• 2x  M3 10mm screws
• 4x  M3 30mm screws
• 6x  M3 nut
• 2x  M5 30mm screws (bigger head)
• 2x  M5 50mm screws (bigger head)
• 2x  M5 10mm spacer
• 2x  M5 nut
• 4x  M4 20mm screws (round head)
• 6x  M4 14mm screws (round head)
• 6x  M4 spacer
• 10x  M4 nut
• 4x  M3 parker (for the fan)
• 1x  Fan 40x40x10

SUGGESTED FOR DUAL HOTENDS CONFIGURATION

• 1x  proximity sensor (LJ12A3-4-Z/BX)
• 1x  E3D-V6 HotEnd 1.75mm 0.4mm nozzle (original or clone versions)
• 1x  Volcano HotEnd 1.75mm 0.6mm nozzle (original or clone versions)
• 1x  NEMA 17 stepper motor (cod. 17HS5425, 1.8°, 2.5A)
• 1x  MK8 aluminum extruder Kit for NEMA 17 stepper motor 1.75mm

NOTE

A file or a sandpaper to refine your prints can be useful.
