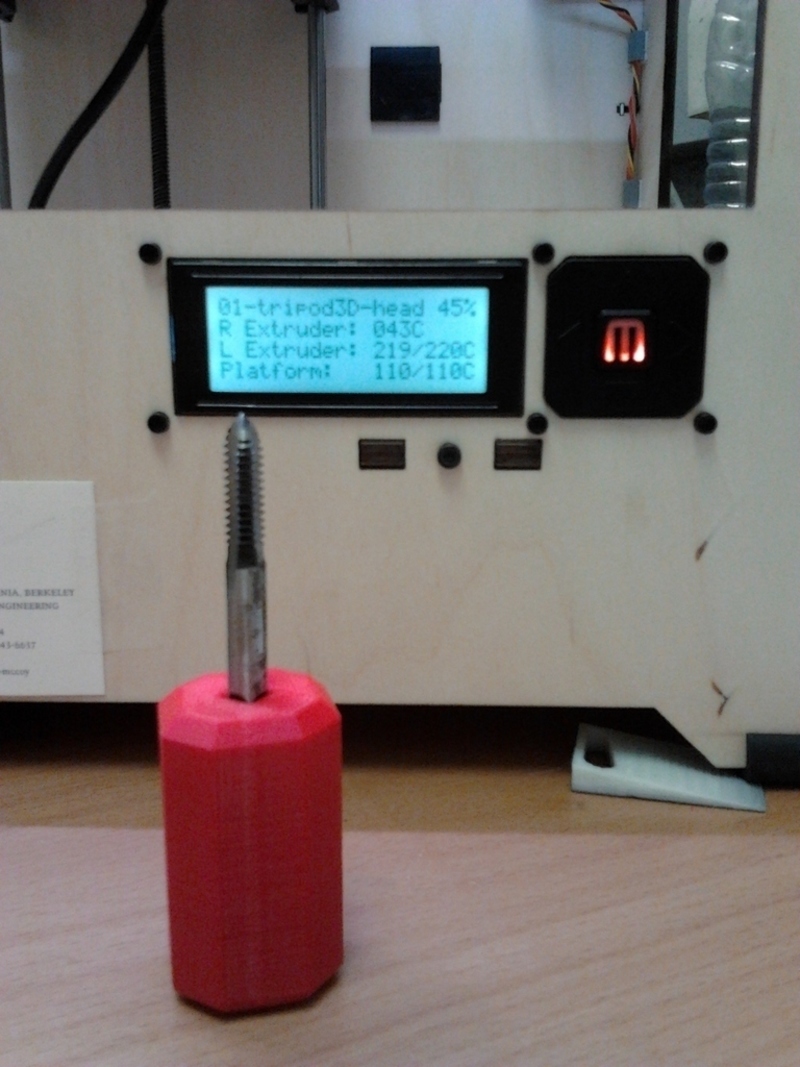

Summary I got sick of using my Leatherman's pliers to hold my 1/4-20 Tap Drill, therefore I quickly designed a nice, ergonomically friendly chuck for 5mm square-ended tap drills. Simply take your 5mm square-ended tap drill, insert it into either side of the chuck and tap that piece...of plastic. Instructions Download and print this 5mm x 5mm tap drill chuck to make tapping whatever parts easy (useful for projects such as the 3D printed tripod: http://www.thingiverse.com/thing:33357) I added stress concentration relief points so it should last you some time unless you're tapping stainless steel or some other harder metals. When I get around to learning OpensCAD, I'll make parametric files so you could easily scale this down to get a tap drill holder for smaller tap drills. Enjoy!
Loading prints...
5mm Tap Drill Chuck
Creative Commons Attribution-ShareAlike
You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given and your contributions are under the same license.
Files Included
1 downloadable file:
Downloaded: 1 times
