Geeetech Aluminum Prusa I3 Anti-Wobble Bracket
Free

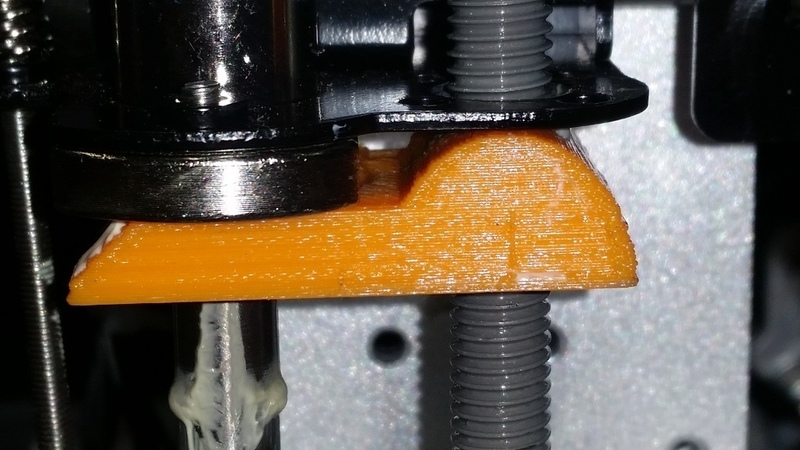

Summary This is a set Anti-Wobble Brackets. Their purpose is to isolate the wobble of the threaded Z Axis Rods to improve the print quality. They are designed to replace the factory nuts on the Geeetech Aluminum Prusa I3 that came with stamped steel Z Brackets. 2 standard M8 Nuts available at most Hardware Stores are required. It should be sized correctly, but if the brackets are tight on the smooth Z Rods, some shaving or sanding will be required to allow smooth movement so they will not jam causing lost steps. Supports are recommended for the area where the nut fits. Please check out my video: https://youtu.be/mYswkbC_AX0 This thing was made with Tinkercad. Edit it online https://www.tinkercad.com/things/lhubjMRleuR

Loading comments...

Loading prints...

Geeetech Aluminum Prusa I3 Anti-Wobble Bracket

likes
0 collections
Creative Commons Attribution-ShareAlike

You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given and your contributions are under the same license.

CC BY-SA Licensed under CC BY-SA
Files Included

1 downloadable file:

View 3D
geeetech_aluminum_prusa_i3_anti-wobble.stl
STL Model
~1-5 MB
File size
Free download - login required
Downloaded: 81 times
