Quick-Grip Clamp Jaws
Free

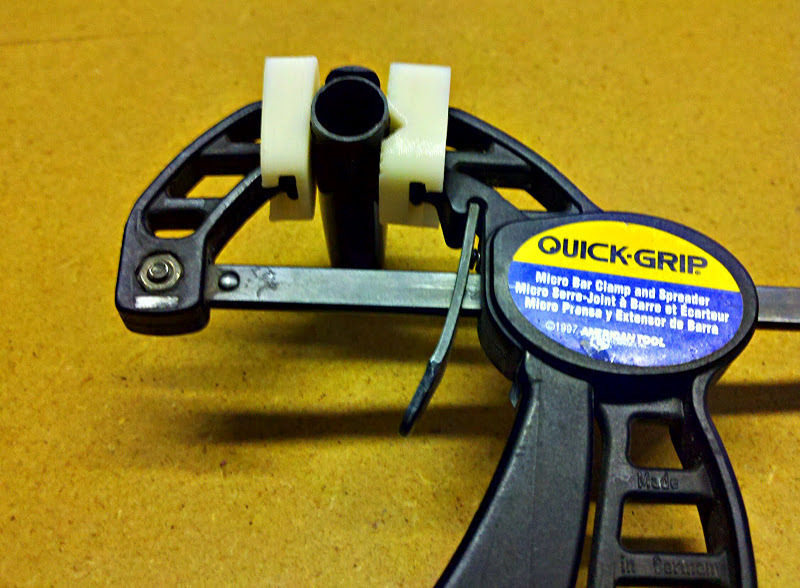

Summary I drew up some quick replacement jaws for small ratcheting clamps. These have a 90° groove and teeth on one side for easily clamping round items. The other jaw has is angled to account for flex in the clamps. This helps the jaws to clamp parallel. Sorry these aren't parametric, it was just a quick Rhino sketch. Instructions Print, slide into place. If they're loose, a dab of glue helps to keep them in place.

Loading comments...

Loading prints...

Quick-Grip Clamp Jaws

likes
1 collection
Creative Commons Attribution

You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given to the creator.

CC BY Licensed under CC BY
Files Included

1 downloadable file:

clamp_jaws.stl
STL Model
~1-5 MB
Est. size
Free download - login required
Downloaded: 84 times
