Jak's 3 Claw Walnut Gripper
Free

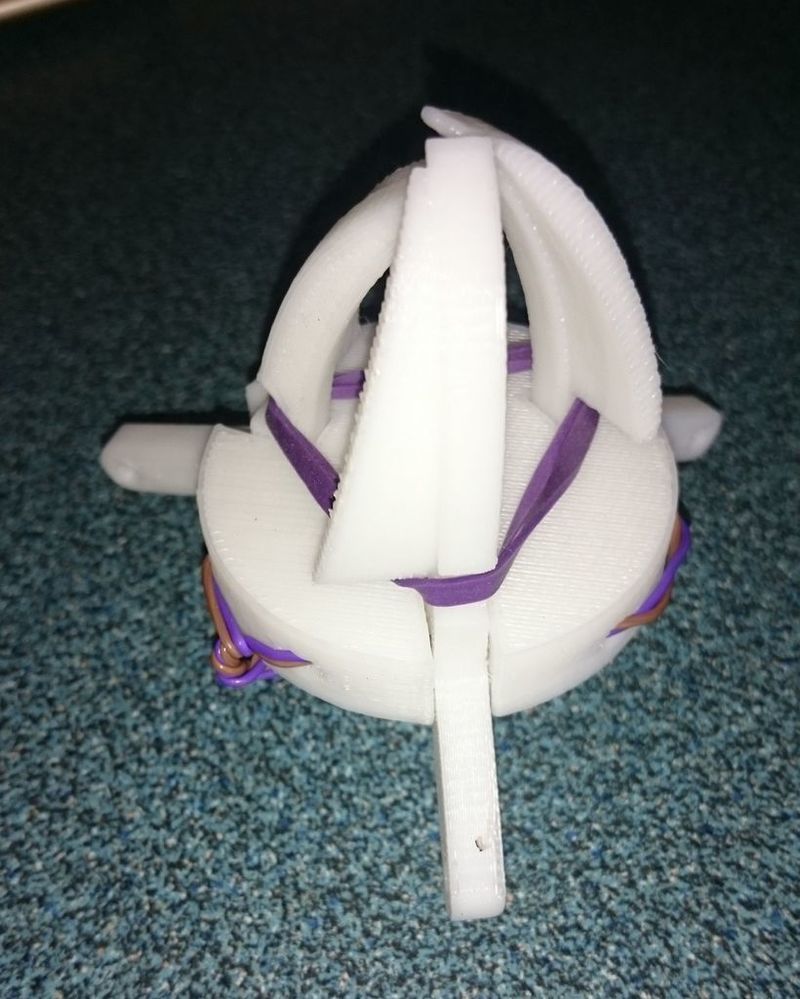

Summary This is a 3 Claw Gripper, to help get Walnuts out of the tree. Manually operated, uses a rubber band to close claws around the walnut, and a pull on the three strings or wires to open the claws. Should fit on the end of a broom handle, so you can reach into the trees. Claw.v3 has an extra wide claw, to try to grip round objects better. Print Settings Printer: Inspire S250 Rafts: Doesn't Matter Supports: Doesn't Matter Resolution: .25 Infill: 25% Notes: Print 3 of claw.v3 (or claw.v2), and 1 of base-round. Held together with rubber band and wire. How I Designed This Initial draft in pencil on paper. Designed in 123D Design.

Loading comments...

Loading prints...

Jak's 3 Claw Walnut Gripper

likes
1 collection
Creative Commons Attribution

You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given to the creator.

CC BY Licensed under CC BY
Files Included

4 downloadable files:

View 3D
base-round.stl
STL Model
311.6 KB
File size
View 3D
claw.v3.stl
STL Model
4.7 MB
File size
View 3D
claw.v2.stl
STL Model
639.3 KB
File size
View 3D
walnut-gripper-combined.stl
STL Model
2.2 MB
File size
Free download - login required
Downloaded: 27 times
