Keychain Laimer Tourbillon (non-functional)
Free

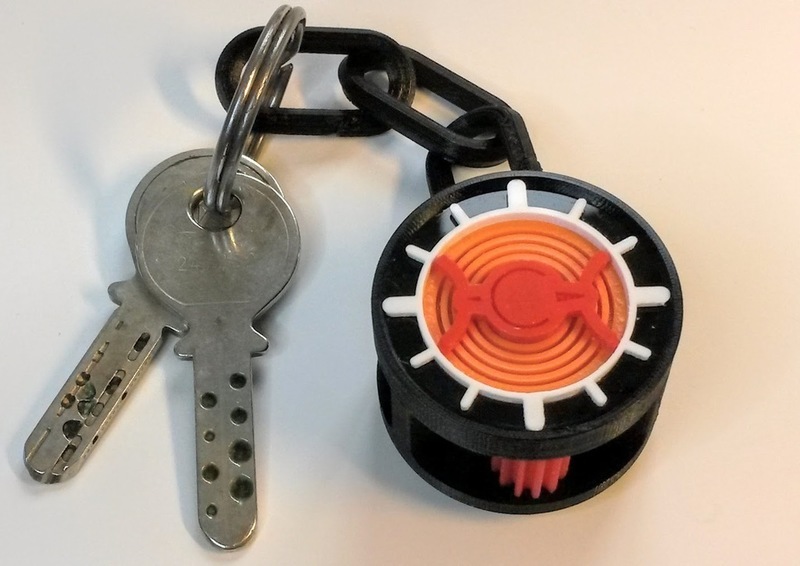

Summary Since my other watch is a little big, I've constructed this baby-watch as a keychain. So I can have it with me every day :-). The baby can't walk, but it has some gears and a spring for playing. Who knows, maybe it learns walking some day? Printing and assembly is easy. There are no Screws or pins. Print Settings Printer Brand: Ultimaker Printer: Ultimaker 2 Rafts: No Supports: No Resolution: high Infill: 30% Notes: Used Simplify3D for slicing. Works great. Post-Printing The only "tricky" assembly step is the Mainspring: it tightly fits into the bottom of the case. The little ratchet-pawl needs to face downwards. Slide the spring with one end beneath the axle of the small gear, and push the other end of the spring into the case (needs some force). The rest is like a simple puzzle (the STL pieces in gallery are sorted in the correct assembly sequence) ... have fun!

Loading comments...

Loading prints...

Keychain Laimer Tourbillon (non-functional)

likes
10 collections
Creative Commons Attribution

You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given to the creator.

CC BY Licensed under CC BY
Files Included

10 downloadable files:

View 3D
Case.stl
STL Model
~1-5 MB
File size
View 3D
Hairspring.stl
STL Model
~1-5 MB
File size
View 3D
FaceTicks.stl
STL Model
~1-5 MB
File size
View 3D
FaceBackground.stl
STL Model
~1-5 MB
File size
View 3D
HoursWheel.stl
STL Model
~1-5 MB
File size
View 3D
Core.stl
STL Model
~1-5 MB
File size
View 3D
GearT25.stl
STL Model
~1-5 MB
File size
View 3D
GearT12.stl
STL Model
~1-5 MB
File size
View 3D
Hook.stl
STL Model
~1-5 MB
File size
View 3D
Mainspring.stl
STL Model
~1-5 MB
File size
