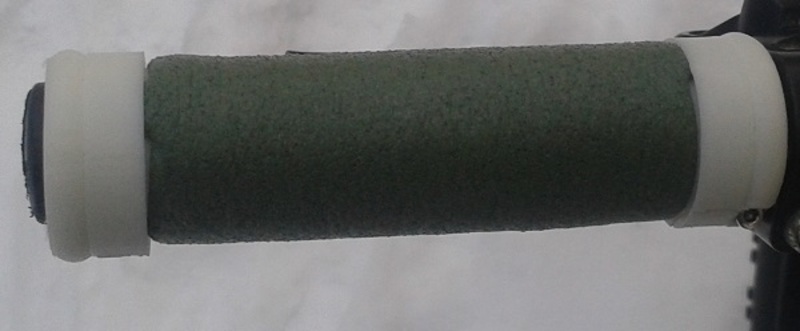

Handlebar tube frames for winter tubes made of polyethylene cell plastics.
The insulating keeps your hands warmer in cold weather.
I have used them now for 5 rides and enjoyed warm hands.
You also need some 6 mm polyethylene sheet, 4 pieces 3 mm x 18 mm screws & nuts and a bit contact glue to complete your tubes.
Printing and building guidance ( see pictures):
You need some skill to put this together. There are some useful hints in the pictures.
The plastics is hold in place on the frame tube with rings ( see picture) that lock in to ends.
You need to cut the cell plastic sheet on right size (115 x 91 mm) and glue it to form a ring before installing other parts.
You need 1 holkki3.stl and two of the others for one tube.
There is a removable stand in holkki3.stl that you must remove after printing.
Be careful not tightening too much just that they keep in place.
Loading prints...
DIY Warm winter handlebar tubes for fatbikers
