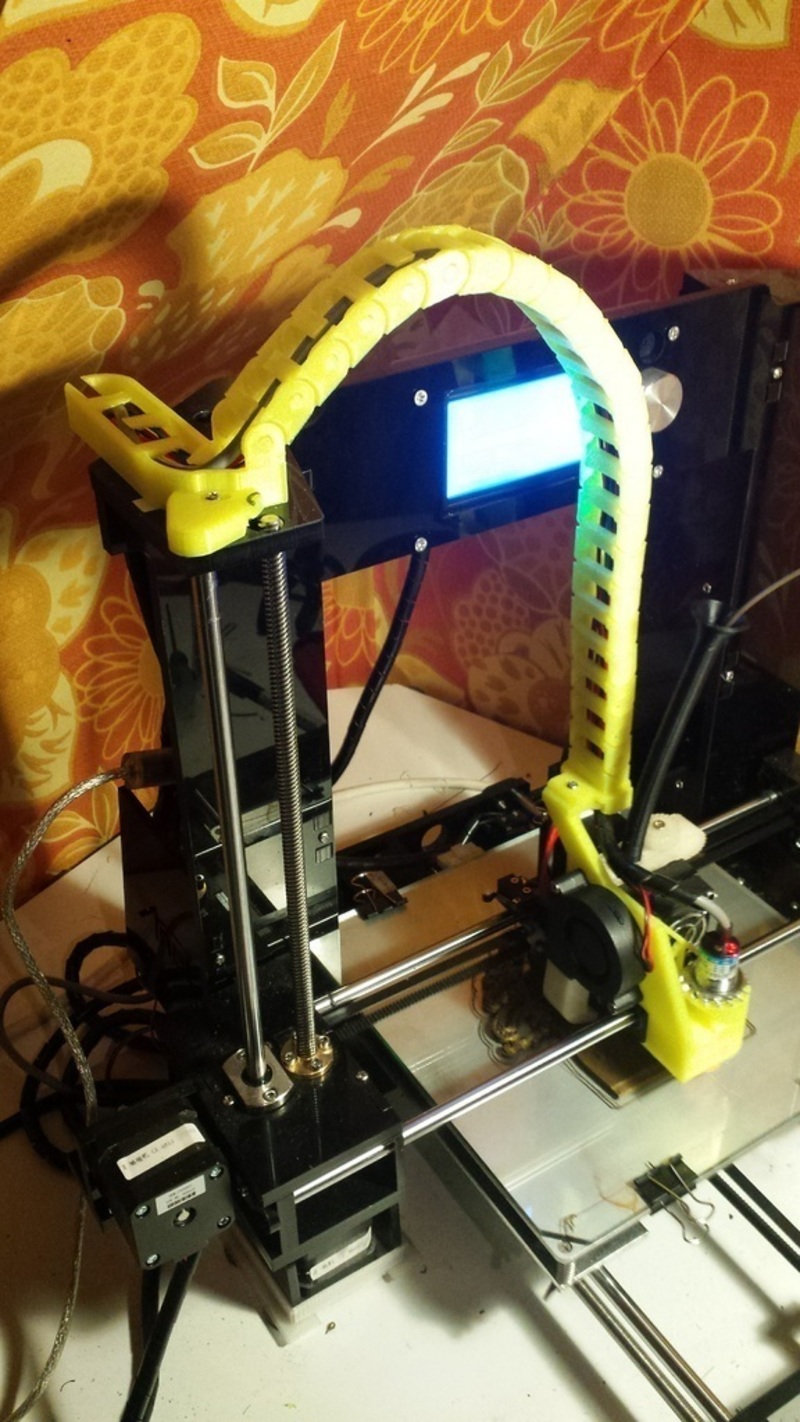

Anet A6 : Auto Leveling bed  AND Cable chain !
Free
Summary Hi, This is a great improvement for the Anet A6 printer : 3D parts for holding a promity sensor diameter 18 (Ref. LJC18A3-H-Z/BX NPN NO, from eBay) AND a cable chain with both end that fit printer and sensor holder. You will also find the "configuration.h" file that is needed for Skynet Marlin firmware for Anet V1.1 board. This file contain exact settings for the Anet A6 (Skynet provide one for Anet A8 only at the moment), and particulary the good offset dimension "nozzle to sensor" for this particular proximity sensor holder part. To replace the Anet proprietary firmware with Malin firmware, check the very good (and functionnal) work made by Skynet3d here : https://www.facebook.com/skynet3ddevelopment/ Don't forget to replace "configuration.h" file by this one for A6. Print Settings Printer: Anet A6 Rafts: No Supports: Yes Resolution: 0.2 Infill: 50% Notes: No troubles to print theses parts. You will need about 13 parts of "Cable Chain Left" and 13 parts of "Cable Chain Right". You have to alternate them when assembling (see pictures). Post-Printing Sensor Holder... Pay attention to the lower right screw of nozzle fan : you don't need the nut anymore, it screw directly in the plastic part (don't screw too hard !!). The upper left screw still need his nut.

Loading comments...

Loading prints...

Anet A6 : Auto Leveling bed AND Cable chain !

likes
21 collections
Creative Commons Attribution

You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given to the creator.

CC BY Licensed under CC BY
Files Included

5 downloadable files:

View 3D
Cable_Chain_Nozzle_end.stl
STL Model
310.8 KB
File size
View 3D
Cable_Chain_Left.stl
STL Model
444.8 KB
File size
View 3D
Cable_Chain_Right.stl
STL Model
444.8 KB
File size
View 3D
Cable_Chain_Out_End.stl
STL Model
752.3 KB
File size
View 3D
Proximity_Sensor_D18_Holder.stl
STL Model
934.5 KB
File size
