Mini Monster Truck/Car/Smart With Suspension - REMIX
Free

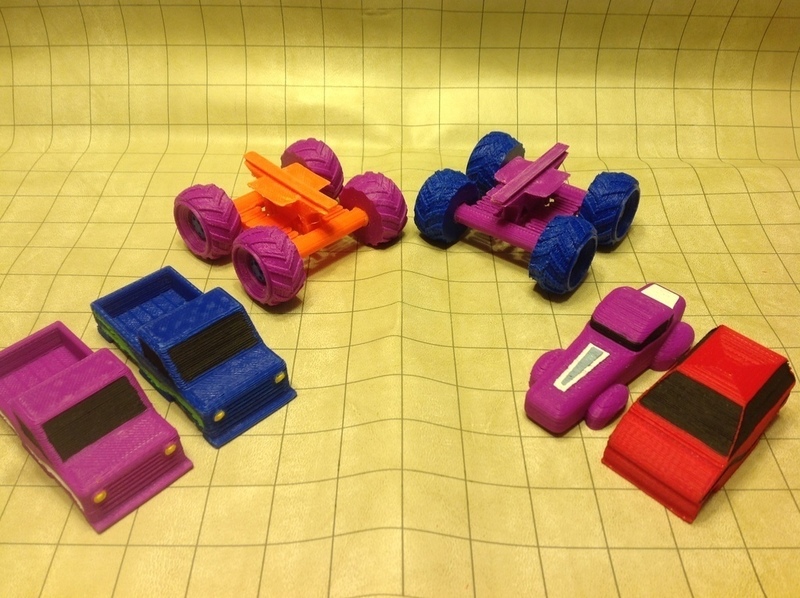

Summary I remixed jakejake's Mini Monster Truck With Suspension. I like the idea of the printed suspension, but I wanted more options for the Monster Truck body. I have had success with designing and printing tongue and groove assemblies, so I combined that with jakejake's truck. I made several option bodies and included a blank template for those who want to design their own. I imported jakejake's truck body into Solid Works and cut off the top and added the tongue. The MonsterTruck and MonsterStealth bodies were my design and drawn in Solid Works. My first design was the smart, but I used an image in Inkscape and exported the dxf, so not really my design. The blank has the groove stop set at the right distance to the lines that mark the axle distance. I made plain versions of the Smart and Truck, but I like the swoop lines on the originals. This design reduces the need for support. I printed the support version of the body, but all the tops can be printed without any support. The tongue and grooves have 0.2mm clearance. They fit tightly, but if the edges are sanded, they should slide fairly smoothly. Happy printing! Print Settings Printer: Da Vinci 1.0 Rafts: No Supports: No Resolution: .2 Infill: 20%

Loading comments...

Loading prints...

Mini Monster Truck/Car/Smart With Suspension - REMIX

likes
2 collections
Creative Commons Attribution

You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given to the creator.

CC BY Licensed under CC BY
Files Included

10 downloadable files:

View 3D
REMIX_Body_Support.STL
STL Model
166.2 KB
File size
View 3D
DesignYourOwnMonster.STL
STL Model
3.0 KB
File size
View 3D
MonsterTruck_Plain.STL
STL Model
736.4 KB
File size
View 3D
MonsterTruck.STL
STL Model
889.8 KB
File size
View 3D
MonsterStealth.STL
STL Model
439.5 KB
File size
View 3D
Smart_Monster_Plain.STL
STL Model
909.2 KB
File size
View 3D
Smart_Monster.STL
STL Model
974.9 KB
File size
View 3D
REMIX_Body_No_Support.STL
STL Model
145.9 KB
File size
View 3D
Rims.stl
STL Model
329.0 KB
File size
View 3D
Wheels.STL
STL Model
1.3 MB
File size
