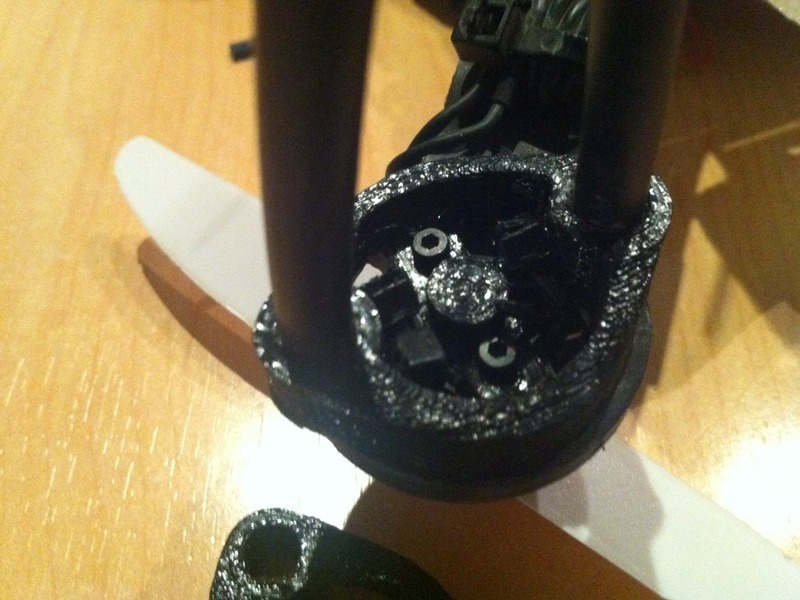

Legs for quadcopter frame + ZMR RCX 1804 motors + WS2812B leds
Free
Summary 20/09/2015: Latest version in file shortCrossLeg.stl. After a lot of crash I found the original design took a long time to break, but still it could be improved a lot. Improvements: Stronger and more durable design Holes for cable ties to reinforce screws Previos comment. This is very cheap way of getting legs for your quadcopter. These are its features: Holes for adding the actual legs with inexpensive tube of 6mm of outside diameter. You can customize its height according to your needs (camera, gimbal or low profile if you don't want to add anything) Hole for adding a WS2812B led: http://www.banggood.com/10Pcs-DC-5V-3MM-x-10MM-WS2812B-SMD-LED-Board-Built-in-IC-WS2812-p-958213.html?p=G508021454809201504F Specific screw holes for ZMR or RCX 1804 2204kv http://bit.ly/1KfGh7O I use it in a KK260 frame, but I am sure it will fit in most of frames. http://www.banggood.com/KK-LED-260-KK260-Multicopter-Mixed-Material-Frame-Kit-p-953846.html?p=G508021454809201504F The screw length without the head for the kk260 is 6 mm. I include several variations. Support me to do more designs and improve them: like it and collect it, so it can get featured by Thingiverse and reach more people. I will also try to prepare the design for Customizer if I see that many people like this design. So far I see that there 20 times more downloads than likes :'-(

Loading comments...

Loading prints...

Legs for quadcopter frame + ZMR RCX 1804 motors + WS2812B leds

like
0 collections
Creative Commons Attribution

You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given to the creator.

CC BY Licensed under CC BY
Files Included

6 downloadable files:

View 3D
shortLedTubes.stl
STL Model
2.3 MB
File size
View 3D
longLedTubesLegs.stl
STL Model
2.3 MB
File size
View 3D
longLedLegs2.stl
STL Model
2.0 MB
File size
View 3D
longLedLegs.stl
STL Model
1.9 MB
File size
View 3D
legTubes.stl
STL Model
1.5 MB
File size
View 3D
shortCrossLeg.stl
STL Model
1.4 MB
File size
Free download - login required
Downloaded: 37 times
