To see more information, you can watch this video: https://youtu.be/n8OhpEBMrQc

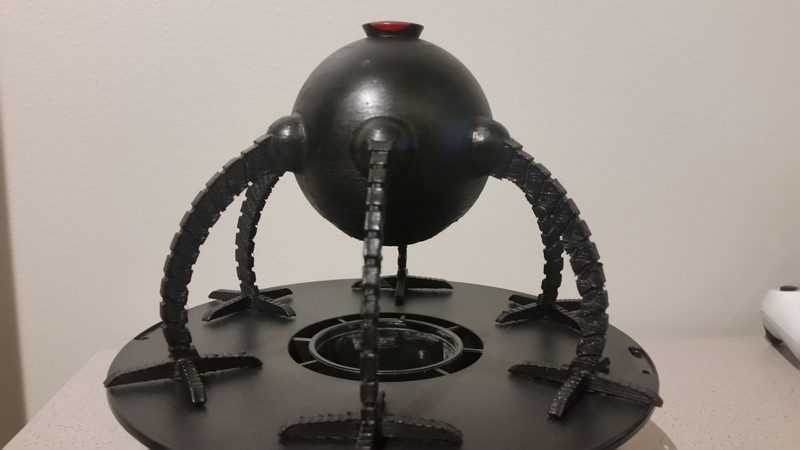

This week I'm bringing you guys the Omnidroid from the Incredibles. I modeled this in Fusion 360 using sketches and various tools to get the shapes here.

It's mostly simple shapes like a big sphere with smaller spheres attaching the legs. The feet are pretty basic shapes that are arranged in a plus shape. The legs are really where the bulk of the design work comes in. You can see what I did in the video but I basically just took a sketched line, and lofted a rectangle shape along the line. Then I created an 's' shape on the side of it and patterned that long the path of the leg.

Then after I printed it (settings below), my wife sanded it, sprayed it with filler primer and sanded it some more. Then she used her airbrush to paint it black. The only thing left after that was to paint the eye red. She did this with a paintbrush and some acrylic paint.

Print Settings: Printer: Robo3D R1 Filament: Hatchbox PLA Layer Height: 0.3mm Infill: 20% Supports: Yes Raft: Yes
