Summary:

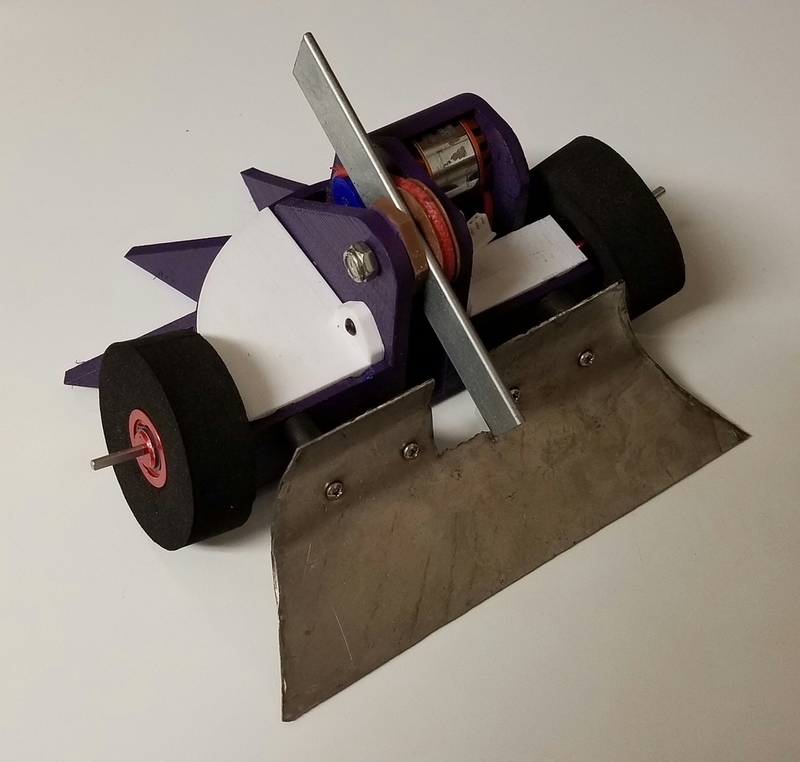

Antweight(1lb) Spinner Battlebot. The body was printed used 50% infill. Used 1mm titanium for the wedge and 0.5in wide steel bar for the spinner. This robot has not seen combat yet, but will later 2017 :)
Parts list:
2- Fingertech silver spark 33:3:1 motors. http://www.fingertechrobotics....
2 - Fingertech snap hubs. http://www.fingertechrobotics....
2 - Fingertech foam wheels, 2.25" x 0.75" http://www.fingertechrobotics....
1 - Fingertech power switch http://www.fingertechrobotics....
1 - 180 mAh battery. Really worried this wont last a full match. Might have to expand frame and add bigger battery. Also having issues with the brushless slowing down while driving fast. This little battery cant source enough current for this robot, but it fits! http://www.fingertechrobotics....
1 - brushless motor http://tinyurl.com/j7y45el
1 - micro brushless esc https://tinyurl.com/jd9qzzw
Printer Brand: Wanhao
Printer: Wanhao Duplicator i3 V2
Rafts: No
Supports: Doesn't Matter
Resolution: 0.2
Infill: 50
