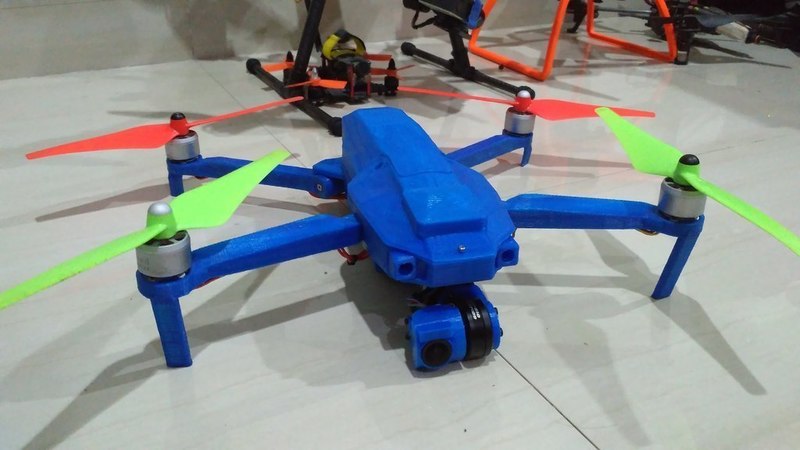

Summary If u like this 3D project, please kindly vote my instructables... :) http://www.instructables.com/id/Printable-Foldable-Quadcopter-DJI-Mavic-Clone-Fram/ !! Caution this project is still on progress so maybe some changes will be made next !! Last update : "Remove weakness spot near rear arm motor, separate all arm so it can print flat to the bed & i move other mod to remix.... 16/1/17" "Just finish First version Mini Gimbal... still tweaking the BGC configuration... https://www.youtube.com/watch?v=1CRgjGHmq7c ... 14/1/17" "Adding head cover no GPS box... 11/1/17" "Fiixed body botom arm holes... 9/1/17" "Extended landing skirt are tested... 7/1/17" "All part are tested, except... optional extended landing skirt 6/1/17" "adding extended landing skirt... not tested yet...6/01/17" "Sorry, i just realize that no screw hole in the back arm after i print it... i just put the hole back on it... 4/1/17" This is only an idea of making fordable drone like DJI MAVIC... feel free to use and edit it... i use a spring for snapping mechanism on folding arm... This new remix having :

bigger body compartment, bottom plate for accessing from bottom GPS box longer arm support for higher clearance but smaller space for gimbal / camera

Print Settings Printer: Reprap i3 Rafts: Doesn't Matter Supports: Yes Resolution: 0,2mm Infill: 50% Notes: all 50% infill except all arm 100% infill using PLA .. PS: i use Cura Engine to slicing it...
